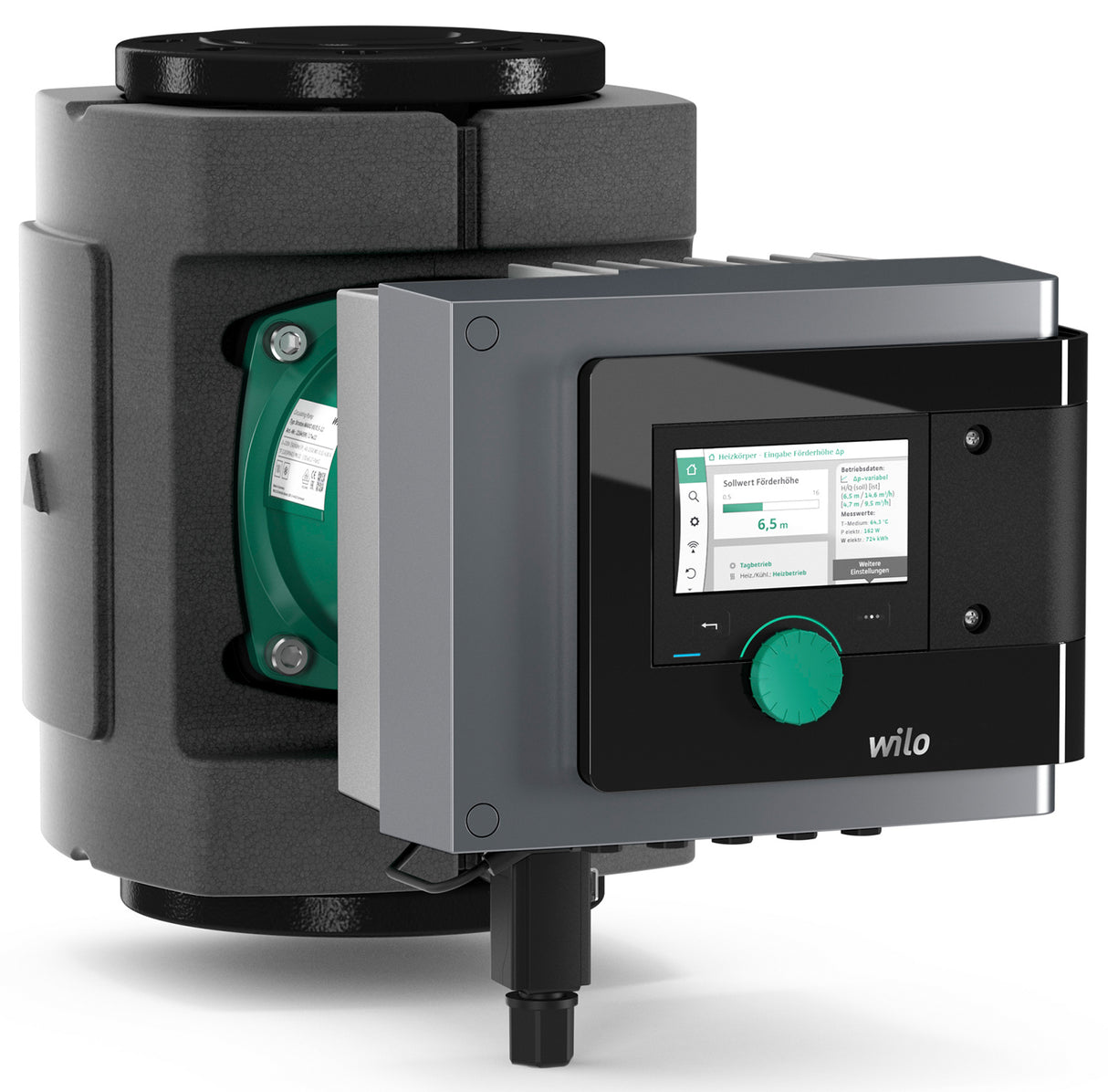

WILO Wilo Smart Pump Stratos MAXO 30/0.5-12 PN10 (DE) – 2186192

Premium Smart Pump Wilo-Stratos MAXOHigh-efficiency inline glandless pump with EC motor and electronic power adjustment. Can be used for heating water, cold water, and water-glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on the pump type.Control modes:Permanent, automatic power adjustment to system requirements without setpoint specification Wilo-Dynamic Adapt plus (factory setting). Up to 20% energy savings compared to dp-v control.Constant temperature (T-const.)Constant differential temperature (dT-const.)Demand-driven volume flow optimisation of the booster pump through networking and communication with multiple pumps (Multi-Flow Adaptation).Constant volume flow (Q-const.)Differential pressure control dp-c at a remote point in the pipe network (poor point control)Constant differential pressure (dp-c)Variable differential pressure (dp-v) with the option of nominal operating point entryConstant speed (n-const.)User-defined PID controlFunctions:Heat quantity measurementCooling quantity measurementAutomatic pump shutdown upon zero-flow detection (No-Flow Stop)Switching between heating and cooling operation (automatic, external or manual)Adjustable volume flow limitation through Q-Limit function (Qmin. and Qmax.)Dual pump operating modes: Efficiency-optimised additive operation for dp-c and dp-v, main/standby operationSave and restore configured pump settings (3 restoration points)Plain text fault message/warning message display including troubleshooting recommendationVentilation function for automatic de-aeration of the rotor chamberAutomatic night setbackAutomatic deblocking function and integrated full motor protectionDry-running detectionDisplay:Control modeSet pointVolume flowTemperaturePower consumptionElectrical consumptionActive influences (e.g. STOP, No-Flow Stop)Design:2 configurable analog inputs: 0-10 V, 2-10 V, 0-20 mA, 4-20 mA and commercial Pt1000; power supply with +24 V DC2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, Heating/Cooling, Manual override (building automation decoupled), Operating lock (keypad lock and remote control configuration protection))2 configurable signal relays for operating and fault messagesSlot for Wilo-CIF modules with interfaces for building automation GA (Optional accessory: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)Wilo Net as Wilo system bus for communication between Wilo products, e.g. Multi-Flow Adaptation; dual pump operation and Wilo-Smart GatewayIntegrated temperature sensorAutomatic emergency operation in special conditions (pump speed definable) e.g. in case of bus communication failure or sensor value failureGraphical colour display (4.3 inches) with operation via one-button manual control levelReading and setting operating data and, for example, creating a commissioning protocol via Bluetooth interface (without additional accessories) using the Wilo Assistant AppIntegrated dual pump management (dual pumps are pre-wired), when using 2 single pumps as a dual pump unit, connection via WILO NetCable break detection for analog signal (in conjunction with 2-10 V or 4-20 mA)Outdoor installation with weather protection possible according to installation and operating instructionsDate and time presetThermal insulation shell for heating applications5-year warrantyScope of deliveryPumpOptimised Wilo-Connector identical for all sizes2x cable gland M16 x 1.5Washers for flange screws M12 and M16 (for nominal connection sizes DN 32 to DN 65)2x gaskets for threaded connectionThermal insulation shellInstallation and operating instructions (digital)Optional accessories:ClimaForm cold insulation to prevent condensationCIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopenPt1000 (B) pipe clamp sensor (for domestic hot water)Pt1000 (AA) sensor for installation in immersion sleeveDifferential pressure sensorOperating dataFluid media: Water, ethylene glycol, propylene glycolMin. media temperature: -10 °CMax. media temperature: 110 °CMin. ambient temperature: -10 °CMax. ambient temperature: 40 °CMaximum operating pressure: 10 barMinimum inlet pressure at 50°C: 3 mMinimum inlet pressure at 95°C: 10 mMinimum inlet pressure at 110°C: 16 mMotor dataEnergy efficiency index (EEI): 0.19Mains connection: 1~230 V ±10%, 50/60 HzCurrent (min): 0.11 ACurrent (max): 1.28 AMotor rated power: 262 WSpeed min.: 750 rpmSpeed max.: 4350 rpmPower consumption: 7 WPower consumption: 295 WEmission of interference: EN 61800-3;2004+A1;2012 / Residential area (C1)Immunity to interference: EN 61800-3;2004+A1;2012 / Industrial area (C2)Insulation class: FProtection class: IPX4DCable gland: 5 x M16x1.5MaterialsPump casing: Grey cast ironImpeller: PPS-GF40Shaft: 1.4122, DLC-coatedBearing: Carbon, antimony-impregnatedInstallation dimensionsSuction pipe connection: G 2Pressure pipe connection: G 2Installation length: 180 mmOrdering informationMake: WiloNet weight approx.: 7.5 kgArticle number: 2186192
