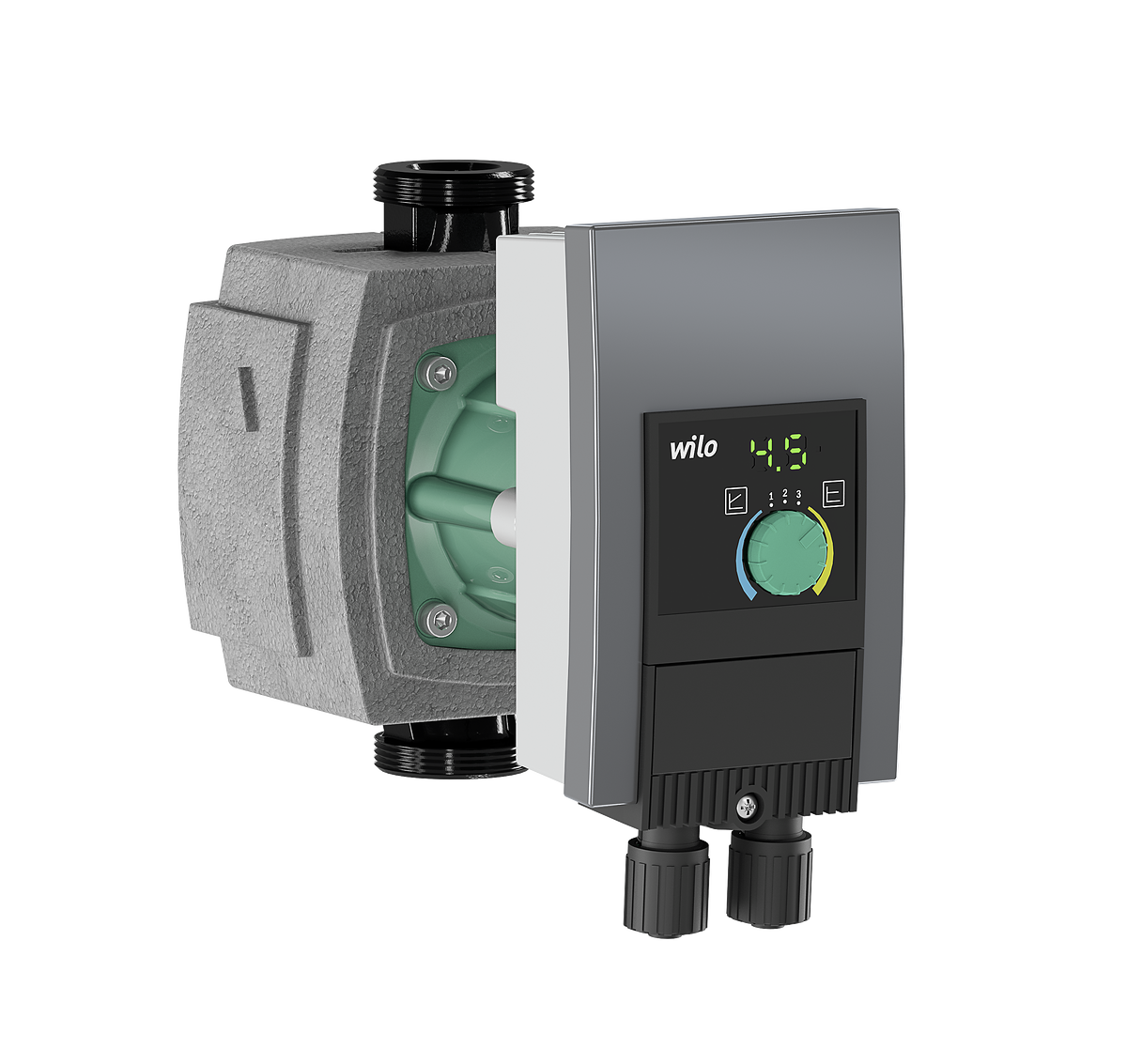

WILO Wilo Glandless High-Efficiency Pump Yonos MAXO plus 25/0.5-12 PN6/10, 200W – 2120602

High-efficiency pump Wilo-Yonos MAXO, electronically controlled, glandless circulation pump, synchronous motor with ECM technology and integrated power control for stepless differential pressure control. Can be used for all heating, ventilation, and air conditioning applications. Standard features:Pre-selectable control modes for optimal load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)3 speed stages (n = constant)LED display for setting the setpoint and displaying error messagesElectrical connection with the Wilo plugFault light and contact for collective fault signalThermal insulation shellFor flanged pumps - flange designs:Standard design for pumps DN 32 to DN 65: Combi-flange PN 6/10 (flange PN 16 according to EN 1092-2) for counter-flanges PN 6 and PN 16Standard design for pumps DN 80 / DN 100: Flange PN 6 (designed PN 16 according to EN 1092-2) for counter-flange PN 6Operating dataFluid media: Water, ethylene glycol, propylene glycolMin. media temperature: -20 °CMax. media temperature: 110 °CMin. ambient temperature: -20 °CMax. ambient temperature: 40 °CMaximum operating pressure: 10 barMinimum inlet pressure at 50°C: 3 mMinimum inlet pressure at 95°C: 10 mMinimum inlet pressure at 110°C: 16 mMotor dataEnergy Efficiency Index (EEI): 0.2Mains connection: 1~230 V ±10%, 50/60 HzCurrent (min): 0.15 ACurrent (max): 1.33 AMotor rated power: 230 WMin. speed: 1000 rpmMax. speed: 4800 rpmPower consumption: 10 WPower consumption: 305 WEmission of interference: EN 61800-3;2004+A1;2012 / Residential area (C1)Immunity to interference: EN 61800-3;2004+A1;2012 / Industrial area (C2)Insulation class: FProtection class: IPX4DCable gland: 2 x M20x1.5MaterialsPump housing: Grey cast ironImpeller: PPE/PS-GF30Shaft: Stainless steelBearing: Carbon graphiteInstallation dimensionsSuction-side pipe connection: G 1½Pressure-side pipe connection: G 1½Overall length: 180 mmOrder informationMake: WiloNet weight approx.: 5.3 kgArticle number: 2120602
