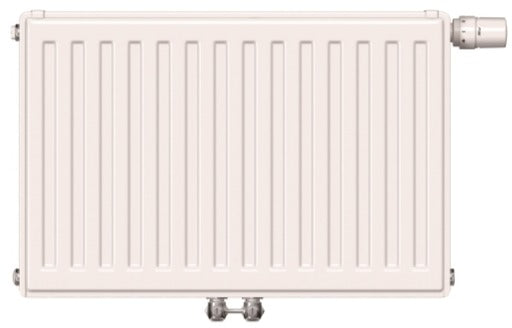

VOGEL&NOOT Vonova Ventil Center Connection 22VM 900/25 Bl 1000mm white – F1H220901001000

VN-T6 middle connection radiator. Middle connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, shapely profiling with 40 mm rib spacing, base coating according to DIN 55900 Part 1, baked at 190 degrees C, finished with an electrostatic powder coating according to DIN 55900 Part 2, in RAL 9016, baked at 210 degrees C object temp., equipped with a fixed, T-shaped valve set, suitable for two-pipe and one-pipe systems using a one-pipe distributor, the kv value of the factory-fitted integrated valve is preset and matched to the heat output, with needs-based adjustments possible in the range of 0.13 to 0.72. Adjustment of the radiator share in one-pipe systems from 30% to 50%. Equipped with construction site protection cap for the integrated valve, rear-welded suspension lugs, a removable, upper cover and two closed side panels on all types, drain, rotatable special vent and blank plugs sealed, the cover system complies with the former BAGUV guidelines, complete pre-installation possible using the mounting template 3/4' A.G., flushing and leak testing of the system using a flushing bend (accessory), alternatively also connectable as a compact radiator on one side or alternately, uniform wall distance for all multi-layer radiators (with special angled bracket also for single-layer radiators). Disassembly and assembly of the upper cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently monitored in production according to EN-ISO 9001, triple packed (cardboard, edge protection, shrink film). Suitable for manual and thermostatic operation, variable connection option for copper, steel, plastic and multi-layer metal pipes, connections: 4 x G 1/2 I.G. and 2 x G 3/4 A.G. bottom center. The thermostatic valve (factory-sealed on the top right) can be exchanged to the left at any time, even retrospectively, without turning the radiator and without crossing the flow and return.
