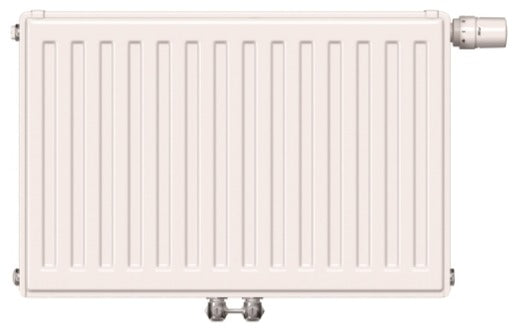

VOGEL&NOOT Vonova Valve Central Connection 21VM 900/13 Bl 520mm white - F1H210900521000

VN-T6 middle connection radiator Middle connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, elegantly shaped profiling with 40 mm groove spacing, primer coating according to DIN 55900 part 1, baked at 190 degrees C, finished with an electrostatic powder coating according to DIN 55900 part 2, in RAL 9016, baked at 210 degrees C object temperature, equipped with a fixed, built-in T-shaped valve set, suitable for two-pipe and one-pipe systems using a one-pipe distributor, kv value of the factory-assembled built-in valve is preset and matched to the heat output, whereby demand-oriented adjustments in the range of 0.13 to 0.72 are possible. Adjustment of the radiator share in one-pipe systems from 30% to 50%. Equipped with a construction site protection cap for the built-in valve, suspension lugs welded on the back, a removable top cover and two closed side panels on all types, sealed drain, rotatable special vent and blank plugs, the cover system complies with the former BAGUV guidelines, complete pre-installation option using the mounting template 3/4' external thread, flushing and leak testing of the system using a flushing elbow (accessory), alternatively also connectable as a compact radiator on one side or alternately, uniform wall distance for all multi-layer radiators (with special angled bracket also for single-layer radiators). Dismantling and assembly of the top cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently production-monitored according to EN-ISO 9001, triple-packed (cardboard, edge protection, shrink film). Suitable for manual and thermostat operation, variable connection option for copper, steel, plastic and multi-layer pipes, connections: 4 x G 1/2 internal thread and 2 x G 3/4 external thread bottom center. Thermostatic valve (factory-sealed on the top right) can be easily exchanged to the left at any time, even retrospectively, without turning the radiator and without crossing flow and return.
