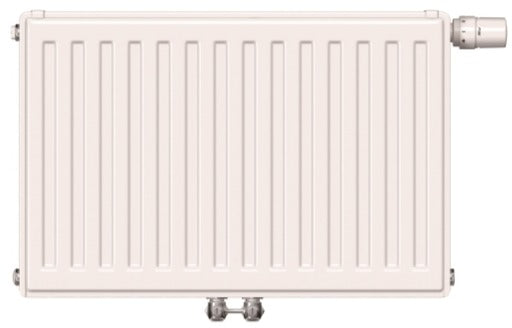

VOGEL&NOOT Vonova Valve Middle Connection 21VM 400/20 Bl 800mm white – F1H210400801000

VN-T6-Mid-connection Radiator Mid-connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, elegantly profiled with 40 mm bead spacing, primer coating according to DIN 55900 Part 1, baked at 190 degrees C, finish painted with an electrostatic powder coating according to DIN 55900 Part 2, in RAL 9016, baked at 210 degrees C object temp., equipped with fixed T-shaped valve set, suitable for two-pipe and one-pipe systems using a single-pipe manifold, Kv value of the factory-fitted integrated valve is pre-set and matched to the heat output, with needs-based adjustments possible in the range of 0.13 to 0.72. Adjustment of the radiator proportion in single-pipe systems from 30% to 50%. Equipped with construction site protection cap for the integrated valve, rear-welded hanging lugs, a removable top cover and two closed side panels for all types, drain, rotatable special vent and blanking plugs sealed, the cover system complies with the former BAGUV guidelines, complete pre-installation option using mounting template 3/4' A.G., flushing and leak testing of the system using flushing bend (accessory), alternatively also connectable as a compact radiator on one side or alternately, uniform wall distance for all multi-layered radiators (with special angled lug also for single-layer radiators). Dismantling and assembly of the top cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently production-monitored according to EN-ISO 9001, triple-packed (cardboard, edge protection, shrink film). Suitable for manual and thermostat operation, variable connection option for copper, steel, plastic and multi-layer composite pipes, connections: 4 x G 1/2 I.G. and 2 x G 3/4 A.G. bottom center. Thermostatic valve (factory-sealed top right) can also be easily replaced on the left at any time without turning the radiator and without crossing flow and return lines.
