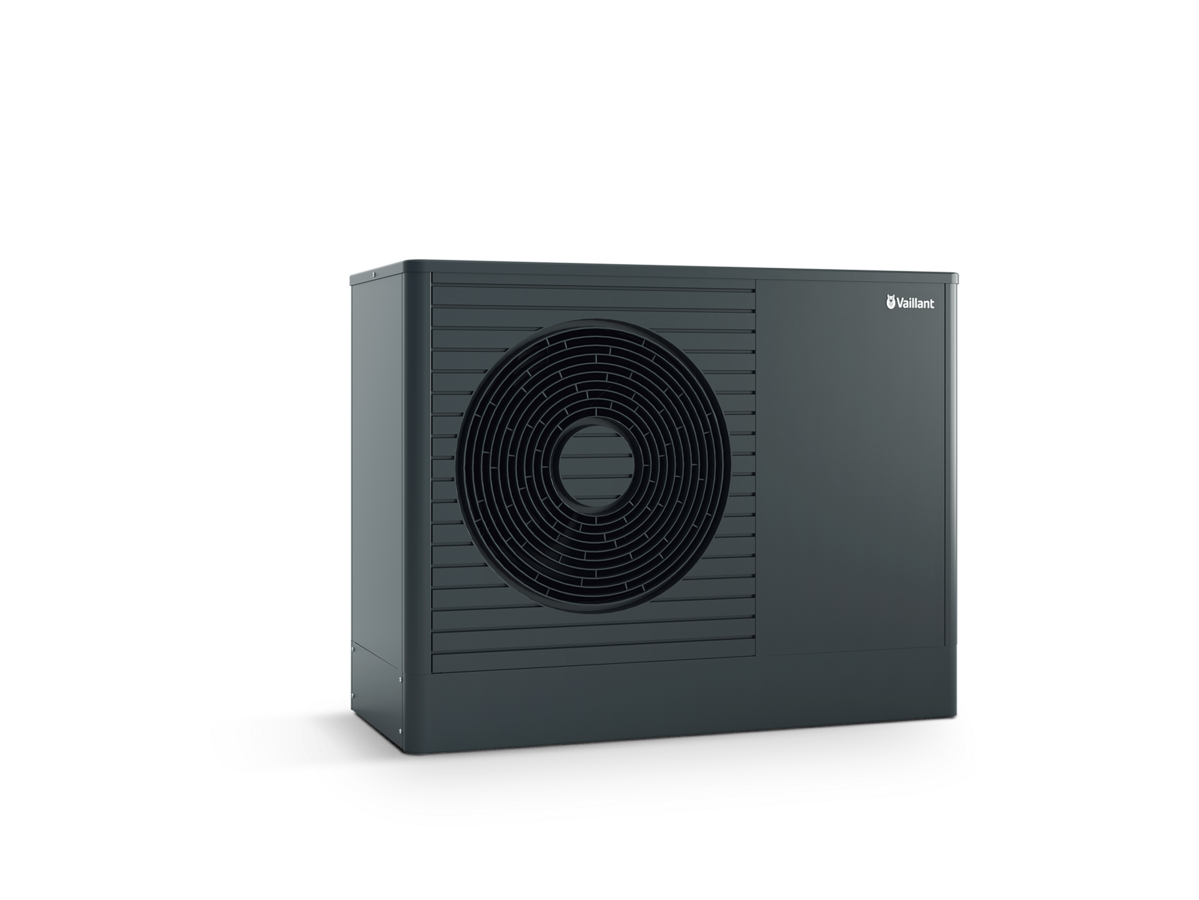

VAILLANT Vaillant Air/Water Heat Pump 12 kW aroTHERM plus VWL 125/8.1 Monobloc R290 – 8000033713 DACH Version
€ 9.742,89 exkl. USt.
VAILLANT Vaillant Air/Water Heat Pump 12 kW aroTHERM plus VWL 125/8.1 Monobloc R290 – 8000033713 DACH Version is backordered and will ship as soon as it is back in stock.
Advantages at a glance
A+++ at 35 °C and at 55 °C
202 % space heating efficiency at 35 °C, 151 % at 55 °C – the highest rating in both temperature classes.
Refrigerant R290
Propane with a GWP of 0.02 – practically no global warming potential and long-term regulatory security.
Sound Safe System
59.9 dB(A) sound power maximum, only 27.5 dB(A) at 3m distance in night mode.
Flow up to 75 °C
Renovation without radiator replacement: even existing radiator systems can continue to operate efficiently.
Active cooling
Activatable cooling operation with 11.66 kW at A35/W18 and EER 5.03. On-site preparation of the heating system required.
Largest model in the series
12.14 kW at -7 °C covers even large or poorly insulated buildings, without resorting to a second heat generator.
Performance & Efficiency according to EN 14511
| Operating point | Heating capacity / Input / COP |
|---|---|
| A7/W35 | 5.74 kW / 1.07 kW / 5.39 |
| A2/W35 | 5.82 kW / 1.32 kW / 4.40 |
| A−7/W35 | 12.14 kW / 4.46 kW / 2.72 |
| A7/W45 | 6.03 kW / 1.53 kW / 3.94 |
| A7/W55 | 5.62 kW / 1.80 kW / 3.12 |
| A−7/W55 | 11.99 kW / 6.06 kW / 1.98 |
| Cooling A35/W18 | 11.66 kW / 2.32 kW / EER 5.03 |
Technical data
| Parameter | Value |
|---|---|
| Energy efficiency class 35 °C / 55 °C | A+++ / A+++ |
| Space heating efficiency ηs 35 °C / 55 °C | 202 % / 151 % |
| Heating capacity partial load point A (Tj −7 °C) W35 | 10.1 kW |
| Refrigerant / Filling quantity / GWP | R290 / 1.3 kg / 0.02 |
| Electrical power consumption (max) | 8.0 kW |
| Power supply / Current (max) | 400 V (50 Hz) / 14 A |
| Protection class / Safety class | IPX4 / I |
| Sound power level (max) | 59.9 dB(A) |
| Sound power A7/W35 in silent mode | 49.6 dB(A) |
| Dimensions (H × W × D) | 1,480 × 1,100 × 450 mm |
| Weight | 206 kg |
| Heating flow and return connection | G 1¼″ |
| Heating circuit content | 4.5 l |
Application limits
| Parameter | Value |
|---|---|
| Flow temperature heating | 20 – 75 °C |
| Distance outdoor unit to last indoor unit | max. 20 m |
| Operating pressure heating circuit | max. 2.5 bar |
| Installation | Monoblock, outdoor installation |
| Color | black-grey RAL 7021 |
Scope of delivery
Frequently asked questions
What does the DACH version mean?
The unit, control, and documents are designed for the German-speaking region: menu navigation and documentation in German, mains connection 400 V / 50 Hz. This allows the heat pump to be used equally in Germany, Austria, and Switzerland. Subsidies and registration requirements differ by country – your local installer will clarify this.
Why R290 and not R32 or R410A?
R290 is propane, a natural refrigerant with a global warming potential of 0.02 instead of several hundred. It is not subject to the scarcity of fluorinated refrigerants and at the same time achieves higher flow temperatures – here up to 75 °C.
Does the 12 kW size fit my house?
The VWL 125/8.1 delivers 12.14 kW at -7 °C outside temperature and 35 °C flow. It is the largest stage in the series and is suitable for large residential buildings, two-family houses, or existing buildings with 11 to 14 kW heating load. The exact dimensioning requires a heating load calculation according to EN 12831.
How does it differ from the 105/8.1?
Housing, refrigerant quantity, efficiency values, and sound behavior are almost identical. The difference lies in the heating output at low outside temperatures: 12.14 kW instead of 10.58 kW at -7 °C.
How loud is the heat pump in operation?
59.9 dB(A) sound power at maximum, in silent mode at A7/W35 only 49.6 dB(A). In night mode, it is 27.5 dB(A) at 3 m distance – quieter than a quiet living room.
What do I need in addition to the outdoor unit?
The aroTHERM plus is a monoblock, the complete refrigeration circuit is outside. For a complete system, depending on the concept, a hydraulic station or a uniTOWER, a hot water tank, and the system control are added. We can put together the right package on request.
Where can I buy the Vaillant heat pump?
At SOLARVIC on solarvic.at – as a specialist dealer and installer, we deliver throughout Austria and advise on dimensioning. Shipping within Austria is free for orders over €5,000.
