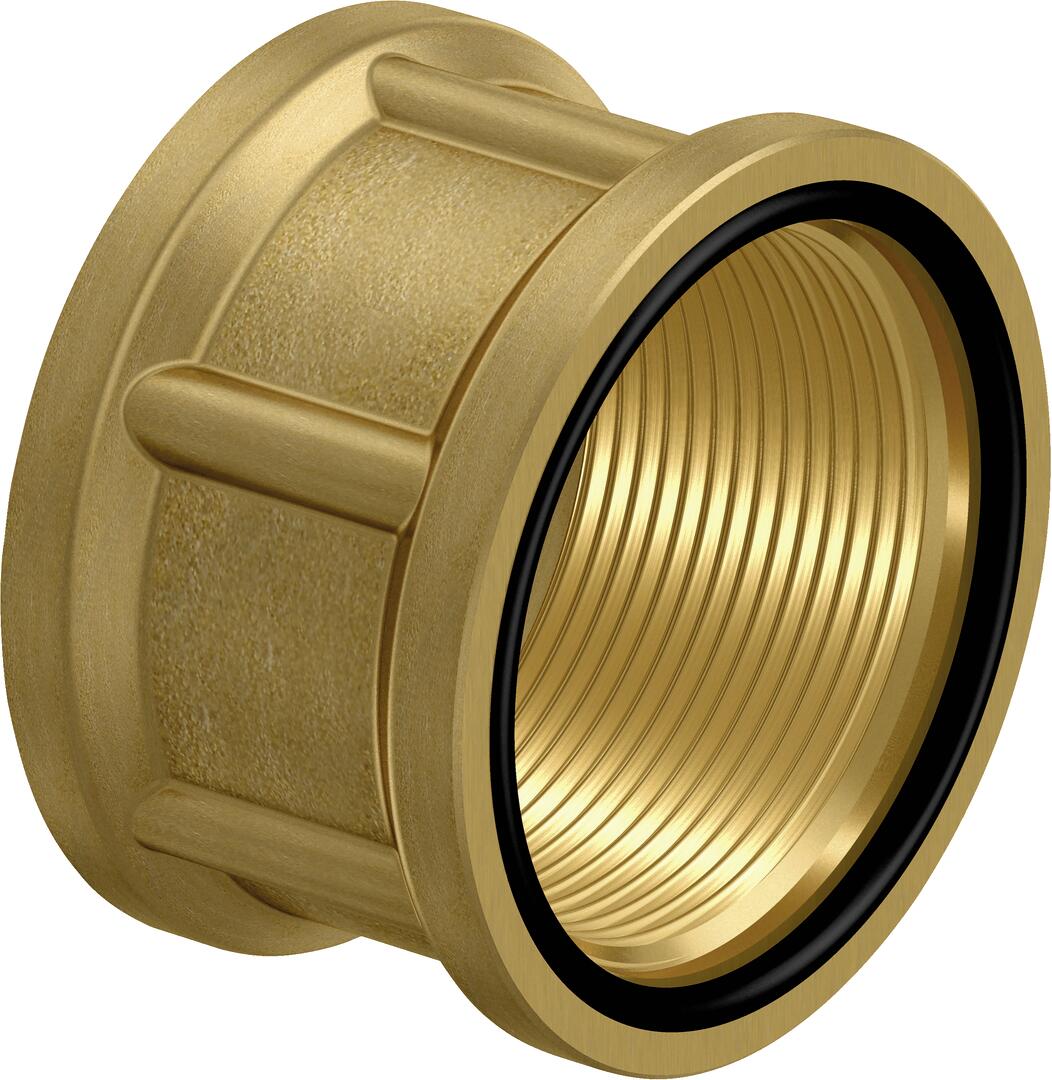

UPONOR Uponor Wipex Threaded Socket 40+50 G11/4 IG, with O-rings – 1018356

Specification:
- Wipex fittings made of corrosion-resistant brass, dezincification-resistant according to DIN EN ISO 6509, with stainless steel screw
- O-ring sealing: between individual Wipex molded parts as well as between Wipex transition nipple and Wipex molded part
- Screw set of the transition nipple / coupling includes stainless steel Allen screw, nut and washer
made of brass
- Clamping sleeve (Dim. 63-110 mm) pre-expanded with plastic plate

Application:
- Fitting system for the pipe systems VIP Thermo, Thermo, Varia, VIP Aqua, Aqua, Quattro,
Supra and Supra PLUS
- Connection / transition between PE-Xa / PE 100-RC medium pipes to transition nipples with cylindrical external thread
- Max. temperature load: +95 °C

Certificates:
- KOMO system certification
- Kiwa system certification
- DVGW certification
- ÖVGW certification

- Cylindrical G internal threads with O-rings
- Max. +95 °C / 10 bar or +20 °C / 16 bar
- KOMO system certification
- Kiwa system certification
- Declaration according to DIN EN 15632
- DVGW W534
- ÖVGW PW302
