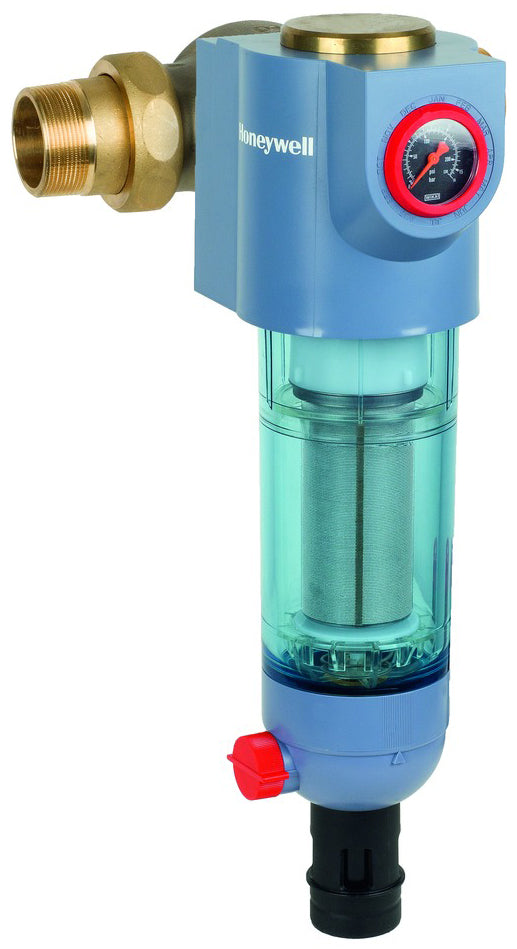

RESIDEO Resideo Fine Filter Primus-Plus F74CS-LF 0.1mm, lead-free, LFAA, 1 1/2" – F74CS-11/2LFAA

Resideo Fine Filter PrimusPlusThe backwashable fine filters of type F74CS continuously ensure the water supply with filtered drinking water, even during the backwash process. The stainless steel fine filter prevents foreign particles, such as rust particles, hemp residues and sand grains, from being flushed in, thus reducing the probability of corrosion. The fine filters are used in systems where a pressure reducer is already installed or where none is required. Installation in horizontal and vertical pipelines is possible.The drain connection complies with EN 1717. With integrated pressure gauge (0-16 bar) and memory ring as an indication for the next backwash. Both are located in the upper part of the filter, are easily accessible and clearly visible. The backwash lever can be easily removed without tools and replaced by an optionally retrofittable backwash automatic. Included in the scope of delivery are a double ring wrench for removing the filter bowl and the horizontally or vertically usable connection piece.The connection piece is made of UBA-compliant lead-free brass (Ecobrass). The transparent filter bowl made of impact-resistant plastic allows easy checking of filter contamination. To protect against UV radiation, it is slightly blue in color. The seals are made of EPDM. All materials lead-free with a lead content The filter insert is completely replaceable and can be replaced with other filter finenesses if required.Medium: Drinking waterVersion: with threaded nozzlesNominal diameter: 1 1/2"Housing material: brass, lead-freePressure rating item: PN 16Connections: Tapered external thread (BSPT)Filter bowl material: Polyamide (PA)Filter fineness: 100 myKvs value: 16Medium temperature: 5 degC - 30 degCNote: Identical in construction to former Honeywell articleManufacturer: ResideoType: Braukmann
