REHAU REHAU Nobby Panel Varionova 30-2 EPS 040 DES – 12278291001

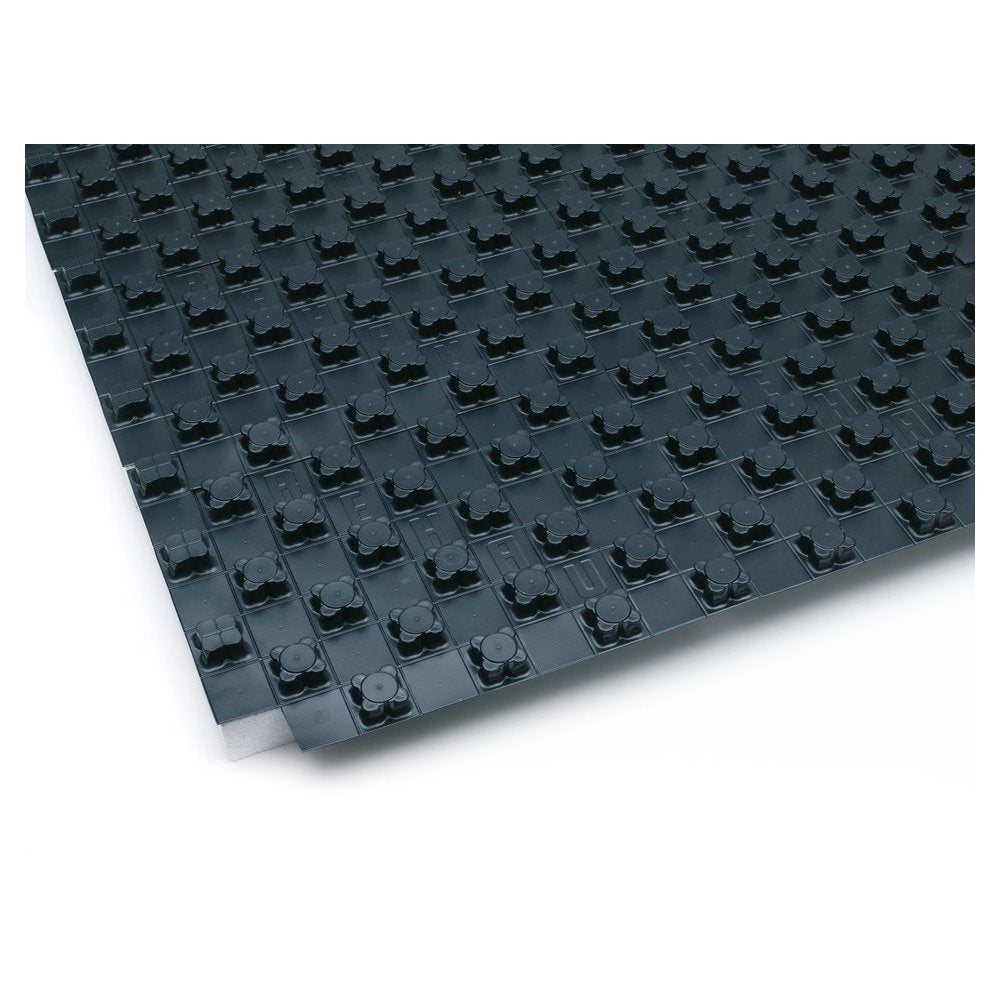

REHAU Varionova Nudged Panel
30-2 EPS 040 DES
Application:
- Installation system for surface heating/cooling of type A according to DIN 18560 and DIN EN 13813
Approval:
- Building material class: B2 according to DIN 4102
- Fire behavior: Class E according to EN 13501-1
- CE marking
Properties:
- Quality-controlled expanded polystyrene on the underside according to EN 13163
- Black cover film made of 100% recycled polystyrene
- Flow screed-tight connection technology of the panels among themselves through two-sided overlapping cover film with molded studs
- Panel dimensions: 1,450 x 850 mm
- Installation dimensions per panel: 1,400 x 800 mm / Area: 1.12 m² per panel
- For RAUTHERM SPEED pipes 14 x 1.5 mm and 16 x 1.5 mm
- For RAUTHERM S pipes 17 x 2.0 mm
- For RAUTITAN flex pipes 16 x 2.2 mm and RAUTITAN stabil pipes 16.2 x 2.6 mm
- For RAUTHERM ML pipes 16 x 2.0 mm
- For RAUTHERM NEO-X5 pipes with dimensions 14 x 1.5 mm, 16 x 1.5 mm and 17 x 2.0 mm
Color:
- Film, black
