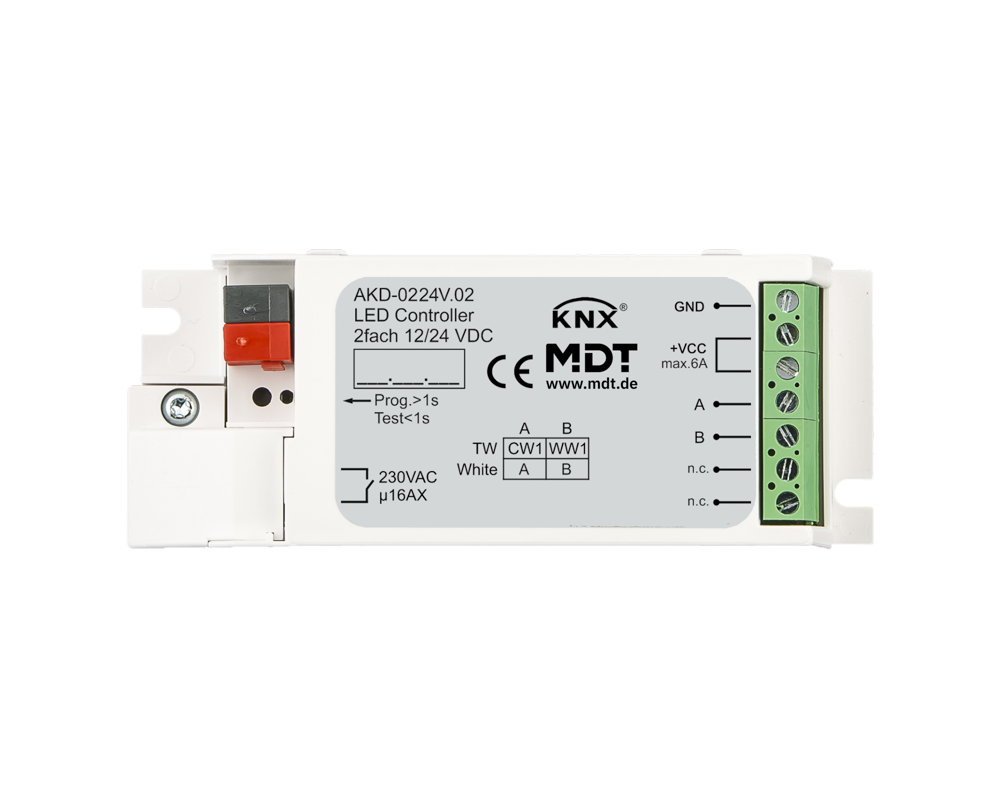

MDT KNX LED Controller 2-way – AKD-0224V.02

KNX LED Controller 2-channel 3/6 A. For 12/24 V CV LED (Common Anode), 2 single channels or Tunable White. Comprehensive application. Absolute and relative dimming. Tunable White color temperature control. Selectable dimming curve and PWM frequency up to 1000 Hz. Individual and predefined sequences (e.g. TV Simulator). Switchable load distribution: 2 channels of 3A each. Parallel operation of two channels with 6 A. Operating modes: 2x White or 1x Tunable White. Automatic color temperature control Dim2Warm. Dynamic daylight control HCL (Human Centric Lighting). Automatic time-dependent dimming. Day/night function. Overcurrent and temperature monitoring. Intelligent 16 A C-load relay output for switching the external LED power supply. Dimensions (H x W x D): 25 x 46 x 113 mm. 3 years product warranty.
