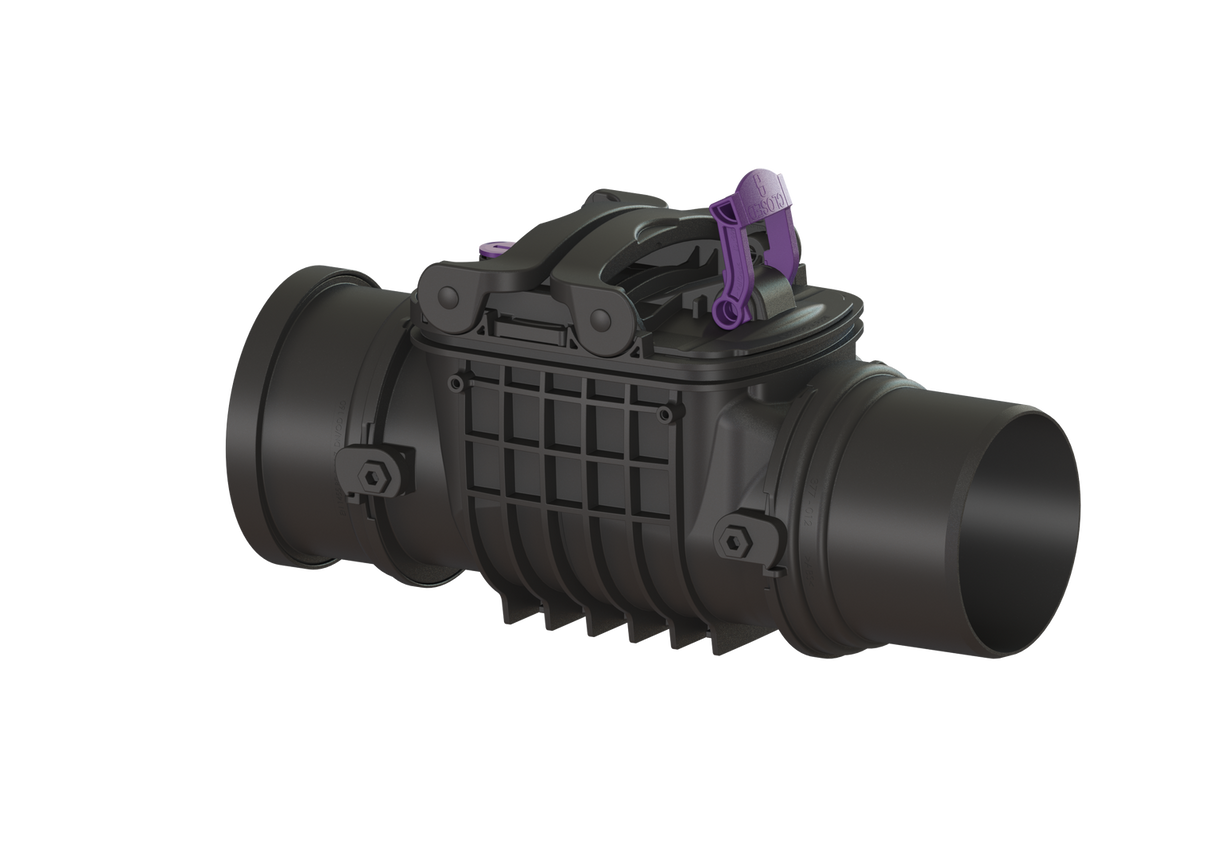

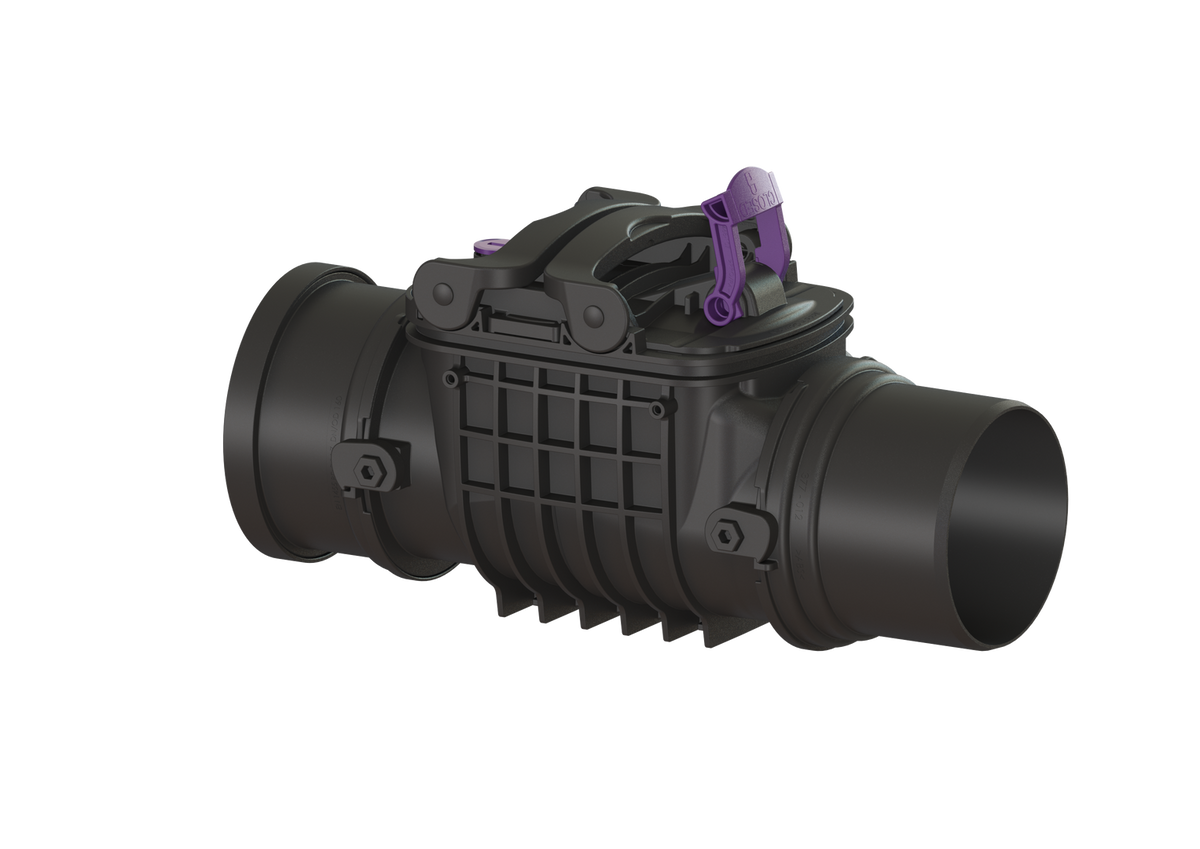

KESSEL KESSEL backwater valve Staufix DN 150, exposed, type 2 – 730150

The backwater valve for faeces-free wastewater is equipped with two mechanical flaps that close automatically in the event of backwater. One flap also serves as a manually lockable emergency closure. Thanks to the modular KESSEL system, existing systems can be easily converted to the StaufixControl backwater valve.

Version
Stainless steel flap as rat protection: no
Emergency closure: yes
Mechanical backwater flaps: 2

General features
Colour: black
Standard: EN 13564
Nominal diameter (DN): 150
Outside diameter (DA): 160 mm
Wastewater type: faeces-free
Installation situation: exposed wastewater pipe
Delivery condition: ready for installation
Backwater protection: Type 2

Dimensions
Net weight: 3.41 kg
Gross weight: 4.09 kg
Gradient drop: 8 mm
Length: 526 mm
Width: 214 mm
Height: 306 mm
Packaging dimension length: 524 mm
Packaging dimension width: 222 mm
Packaging dimension height: 265 mm

Cover features
Cover type: locking lid
Lid lock: one-hand lock
