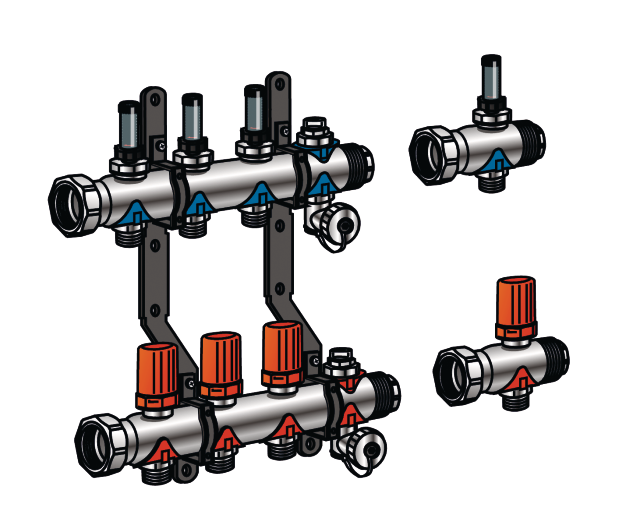

KE KELIT KM590E KELOX FB Manifold 7 L: 425mm Operating Range: 80 degrees C-6 bar – 7907500

Flow and return manifolds with 3/4" Eurocone male thread heating circuit outlets, with ventilation at the highest point and drainage, manifold ends closed, connections with molded union nut 1" flat sealing, manifold ends with 1" male thread, for screwing together individual manifold bars without additional connecting fittings, on the flow double spindle valve - presettable, tops suitable for KM596 KELOX-Thermik motor, on the return water flow meter (0.5-2.5 l/min), brass pore-free metallized, including writable labels for each heating circuit and sound-insulated metal brackets. Extension module (1 circuit) without drainage, ventilation and metal bracket. Application range: tmax. 80°C/6 bar ATTENTION WITHOUT KM220 Euro screw connection!
