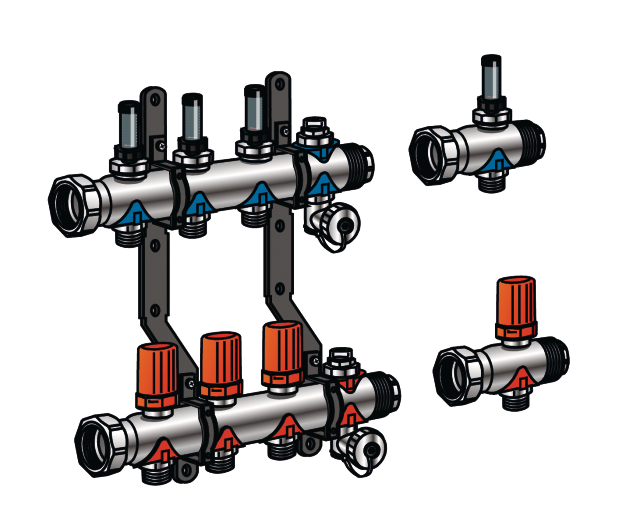

KE KELIT KM590E KELOX FB-Distributor 12 L: 675mm Area of use: 80 degrees C-6bar – 7912500

Flow and return manifolds with heating circuit outlets 3/4" Eurocone male thread, with vent at the highest point and drain, manifold ends sealed, connections with integrated union nut 1" flat sealing, manifold ends with 1" male thread, for screwing together individual manifold bars without additional connecting fittings, on the flow double spindle valve - presettable, top parts suitable for KM596 KELOX thermic motor, on the return flow meter (0.5-2.5 l/min), brass pore-free metallized, incl. writable labels for each heating circuit and sound-insulated metal brackets Extension module (1 circuit) without drain, vent and metal bracket Area of application: tmax. 80°C/6 bar ATTENTION WITHOUT KM220 Euro screw connection!
