KALDEWEI Kaldewei Superplan Shower Tray without Support 80x80x2.5 white - 447500010001

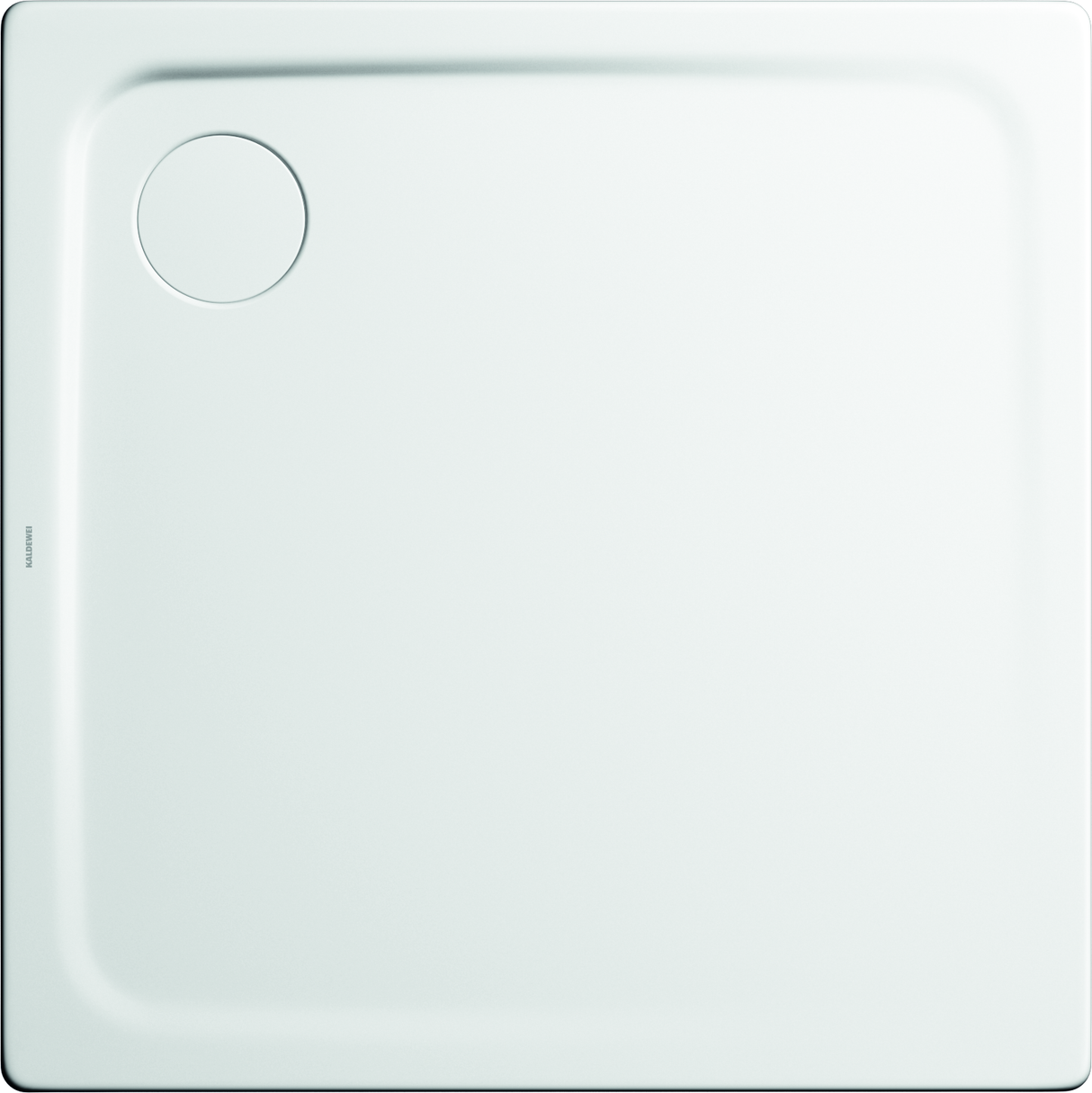

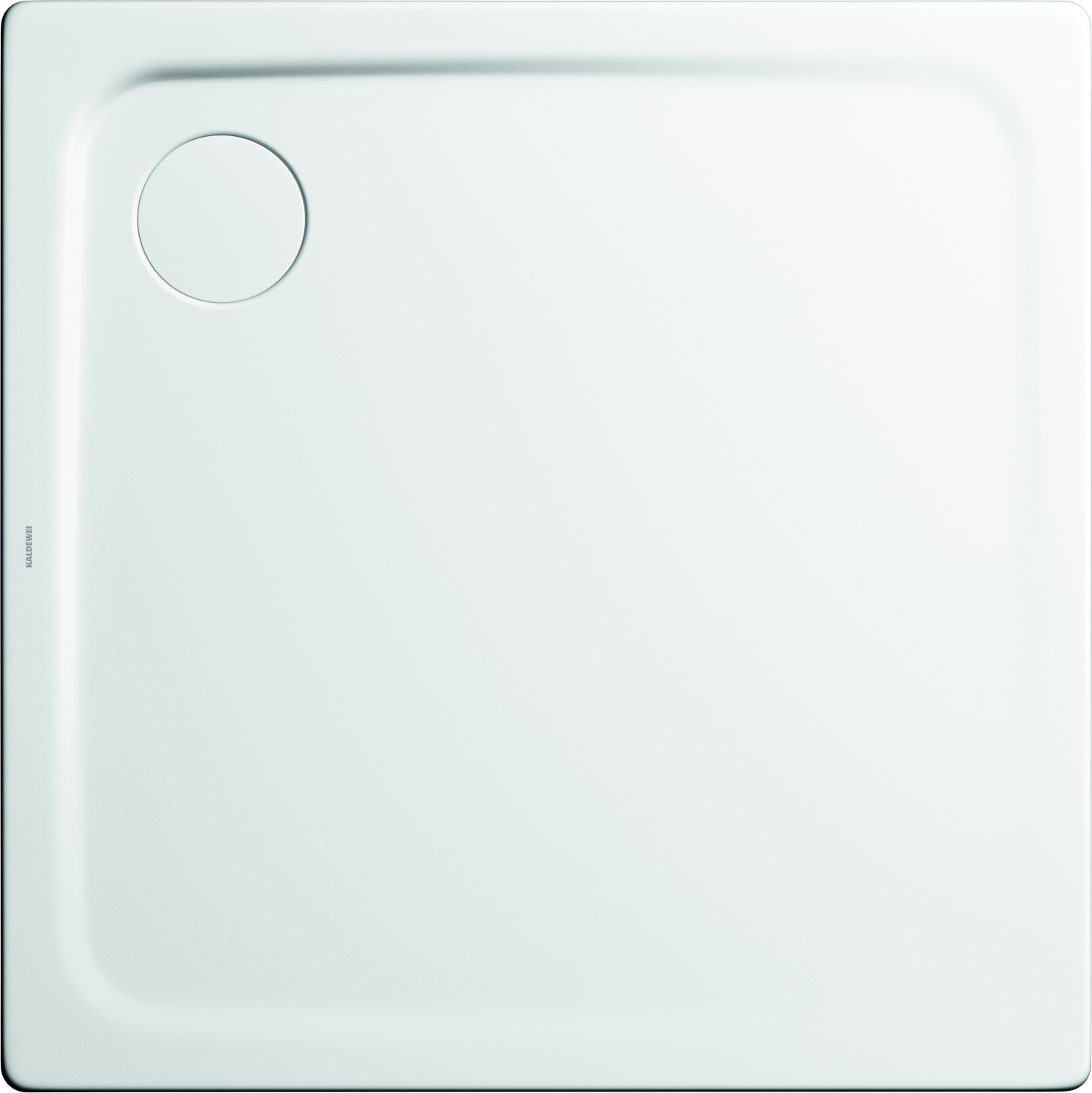

KALDEWEI SUPERPLAN CLASSIC Shower Surface, 800x800x32 mm, Model No: 386-1

Product Description:
Flush-to-floor shower surface with corner drain and all-around embossment.

EU TAXONOMY READY through the official publication of EPDs

You can find the current Environmental Product Declaration (EPD) here:
https://www.kaldewei.de/unternehmen/nachhaltigkeit/epd

Steel enamel products stand for sustainability and are 100% recyclable.

The standard white version of this product
is officially Cradle to Cradle certified® in Silver.

Model: SUPERPLAN CLASSIC
Model No: 386-1
Outer Length (mm): 800
Outer Width (mm): 800
Rim Height (mm): 32
Depth (mm): 25
Material: KALDEWEI Steel Enamel
Manufacturer: KALDEWEI

Product Specification:
Shower surface shape: Square
Installation: Suitable for flush-to-floor installation
Warranty: 30 years according to warranty certificate
MADE IN GERMANY
Drain hole (mm): 90
Drain position: Corner drain
Grounding lug for potential equalization.
Weight (kg): 17.30
CO2 Footprint (kg): 21.89

OPTIONAL Installation:
Shower tray sound insulation set DWS
Model No: DWS: '.........'

Bathtub connection sound insulation tape WAS 70
Model No: WAS 70: '.........'

Shower tray anti-drumming set DW-ADS
Model No: DW-ADS: '.........'

Shower surface foot frame FR 5300 FLEX (for -1 models)
Model No: 5300: '.........'

System Installation Box S-IX
Model No: System Installation Box SIX: '.........'

Sealing set FLEX
Model No: Sealing set FLEX: '.........'

Shower surface foot frame FR 5300 FLEX PLUS (for -1 models)
Model No: 5300_PLUS: '.........'

Cut protection tape
Model No: Cut protection tape: '.........'

Installation system frame ESR flush with floor (for -1 models)
Model No: ESR FLUSH WITH FLOOR: '.........'

Sealing set flush with floor
Model No: Sealing set flush with floor: '.........'

Bathtub installation tape WES 130: For sound insulation and separation between product bottom edge and brickwork
Model No: WES 130: '.........'

OPTIONAL Inlet/Outlet Technology:
Waste fitting KA 90 horizontal: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model No: 4103: '.........'

Waste fitting KA 90 flat: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model No: 4104: '.........'

Waste fitting KA 90 vertical: Chrome drain cover, hair trap included.
Universally applicable for FR and ESR.
Optional accessories: enamelled drain cover for KA 90
Model No: 4105: '.........'

Drain cover KA 90: supplementary to fittings 4103, 4104, 4105
Model No: Drain cover KA 90: '.........'
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

Shower surface colours:
Alpine white: '...........'
Sanitary colours: '...........'
COORDINATED COLOURS COLLECTION: '...........'

OPTIONAL Surfaces:
Easy-care PEARL EFFECT: '...........'
Anti-slip surface Anti-slip enamelling: '...........'
Anti-slip surface Full anti-slip enamelling: '...........'
Anti-slip surface KALDEWEI SECURE PLUS Anti-slip: '...........'
Virtually invisible anti-slip on the standing surface INVISIBLE GRIP: '...........'
Note: Anti-slip surfaces cannot be combined with Pearl Effect

According to EU Construction Products Regulation (CPR):
CE 15 KBW001 PH/marked according to
DIN EN 14516 - CL1+CL2
Certified surface:
Scratch and impact resistant, chemical resistant,
heat resistant, UV resistant, dimensionally stable,
easy to clean and hygienic.

Safety technical investigation:
TÜV Rheinland confirms that KALDEWEI's
Anti-slip/Full anti-slip enamelling has
slip resistance according to assessment group B
for wet-loaded barefoot areas (DIN 51097) and
according to assessment group R10 for anti-slip
properties in workrooms and work areas
with increased risk of slipping (DIN 51130).

Attention: The article number (GTIN) refers to the standard white version from the product family.
