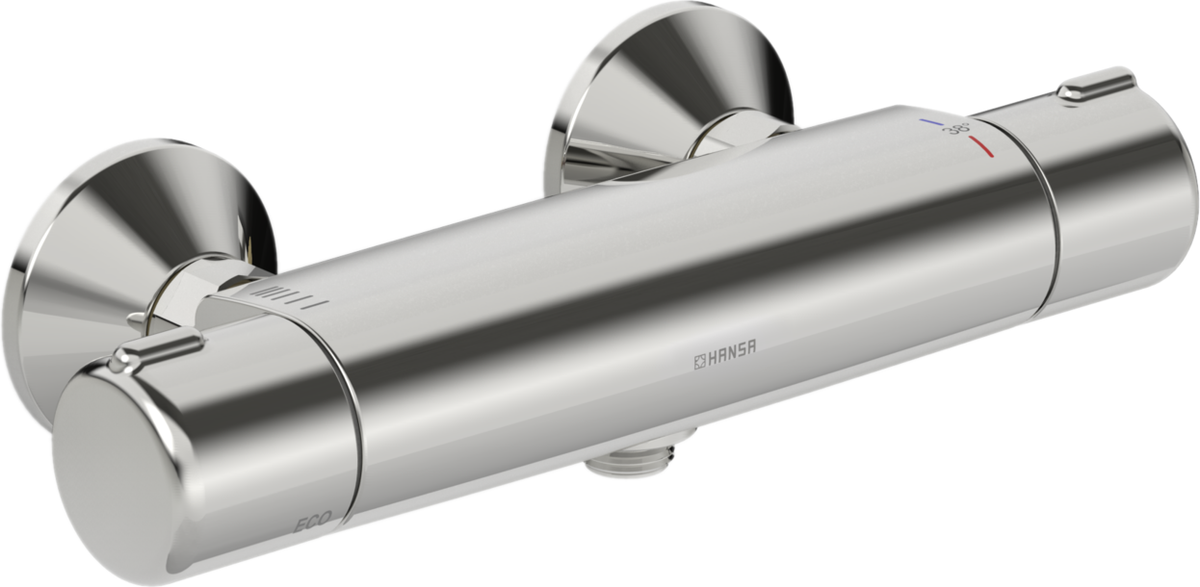

HANSA Hansa Hansamicra Exposed Shower Thermostat – 5815 0171

GENERAL ATTRIBUTES: - Product group: Shower faucet - Installation type: Wall mounted - Technical feature: Thermostat - Finish: Chrome - BIM data available: Yes PRODUCT FEATURES: - Connection: S-connections - Lever/handle type: Temperature control handle, Flow control handle - Shower parts: Eco-flow - Temperature settings: Safety stop against scalding at 38C, THERMO COOL: Increased safety due to minimal heating of the faucet body - Mechanical parts: Ceramic disc valve for flow rate control for one outlet, Thermostatic cartridge for temperature control, Backflow preventer, Dirt filter - Additional features: Intrinsically safe against backflow in domestic use (according to DIN EN 1717) FLOW PROPERTIES: - Economy flow at 300 kPa: 11.40 l/min - Flow at 300 kPa: 19.20 l/min REGULATIONS / STANDARDS: - EN Standard: EN 1111 APPROVALS: - DVGW: DW-6509CT0298 - ABP: PA-IX 7306/IB - CSTB: 322-M1-20/1 TECHNICAL FEATURES: - DN size: DN15 - Hot water supply: max. +90C - Working pressure: 100 - 1000 kPa - Installation distance: cc150 +- 15 mm LOGISTICS: - Gross weight: 1.98 kg - Packaging dimensions: 294.0 x 164.0 x 83.0
