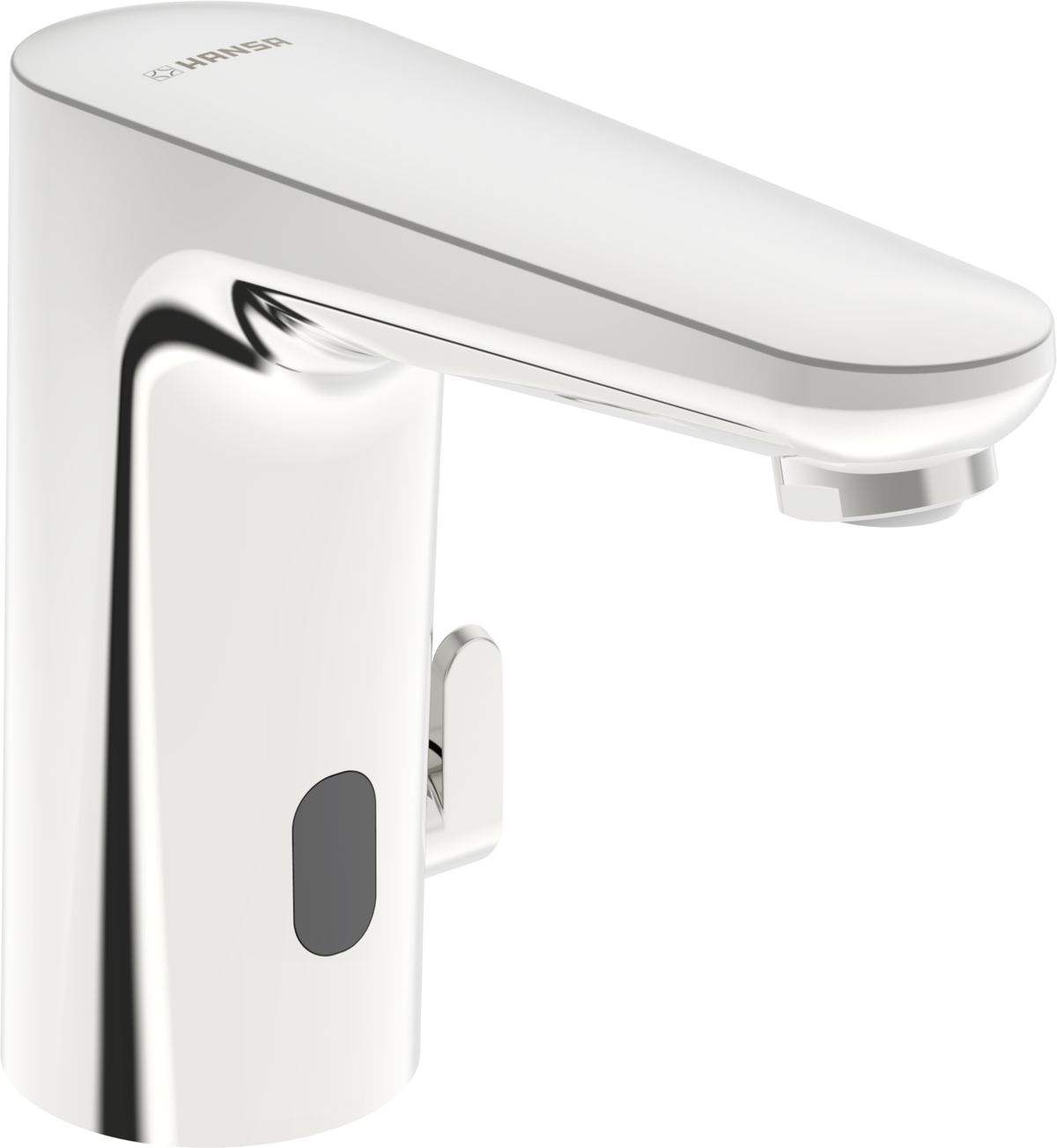

HANSA Hansa Hansaelectra Basin Mixer Bluetooth, 230/9 V, chrome – 9110 2009

GENERAL ATTRIBUTES:
• Product group: Basin mixer
• Installation type: Deck mounted
• Technical characteristic: Contactless, Mains powered, Bluetooth® capable, Lead free
• Surface: Chrome
• BIM data available: Yes

PRODUCT PROPERTIES:
• Aerator type: PCA® constant flow rate regardless of flow pressure, Swivelling
• Connection: Connection via flexible pressure hoses
• Installation: 1-hole
• Handle/Operating lever type: Temperature control handle
• Spout type: Fixed spout
• Temperature settings: Adjustable hot water stop (included), Intelligent electronic scald protection
• Mechanical parts: Mixing valve for manual temperature adjustment, Non-return valve, Debris filter
• Electronic part: Advanced PSD sensor with autofocus, Power supply unit included, Signal lights
• Special properties: HANSA 3S-Installation: System for safe and quick installation, Software settings changeable via CONNECT app
• Additional properties: without silicone-containing greases
SOFTWARE SETTINGS:
• Follow-up time: 6 s (1-20 s)
• Hygiene flushing: off (off/1-120 h)
• Automatic flushing duration: 33 s (1-1800 s)
• Max. flow duration: 5 min (1 - 1800 s)
• Operating distance: 20-130 mm (110/130/160 mm)

FLOW PROPERTIES:
• Flow at 300 kPa (flow limiter): 6.00 l/min

ELECTRONIC ATTRIBUTES:
• Electrical connection: 230 / 9 V
• Bluetooth version: 5.x (D060576)
REGULATIONS / REQUIREMENTS:
• EU Directive: Radio Equipment Directive 2014/53/EU ,
Low Voltage Directive 2014/35/EU ,
EMC Directive 2014/30/EU ,
RoHS Directive 2011/65/EU
• EN Standard: EN 15091,
ETSI EN 301 489-1 V1.9.2 ,
ETSI EN 300 328 v2.2.2 ,
EN 61000-6-1:2007 ,
EN 61000-6-3:2007+A1:2011+AC:2012 ,
EN 60335-1:2012+A11+A13+A1+A14+A2+A15:2021, Part 19.11.4
• Noise class: I (ISO 3822)
• Protection class: IP 55 / transformer IP 20
TECHNICAL PROPERTIES:
• DN size: DN15
• Projection: 123 mm
• Material: Composite material
• Operating voltage: 9 V
• Hot water supply: max. +70C
• Working pressure: 100 - 1000 kPa
• Connection size: G3/8
• Backflow preventer (EN1717): AA

LOGISTICS:
• Gross weight: 0.91 kg
• Packaging dimensions: 284 x 191 x 83.5
