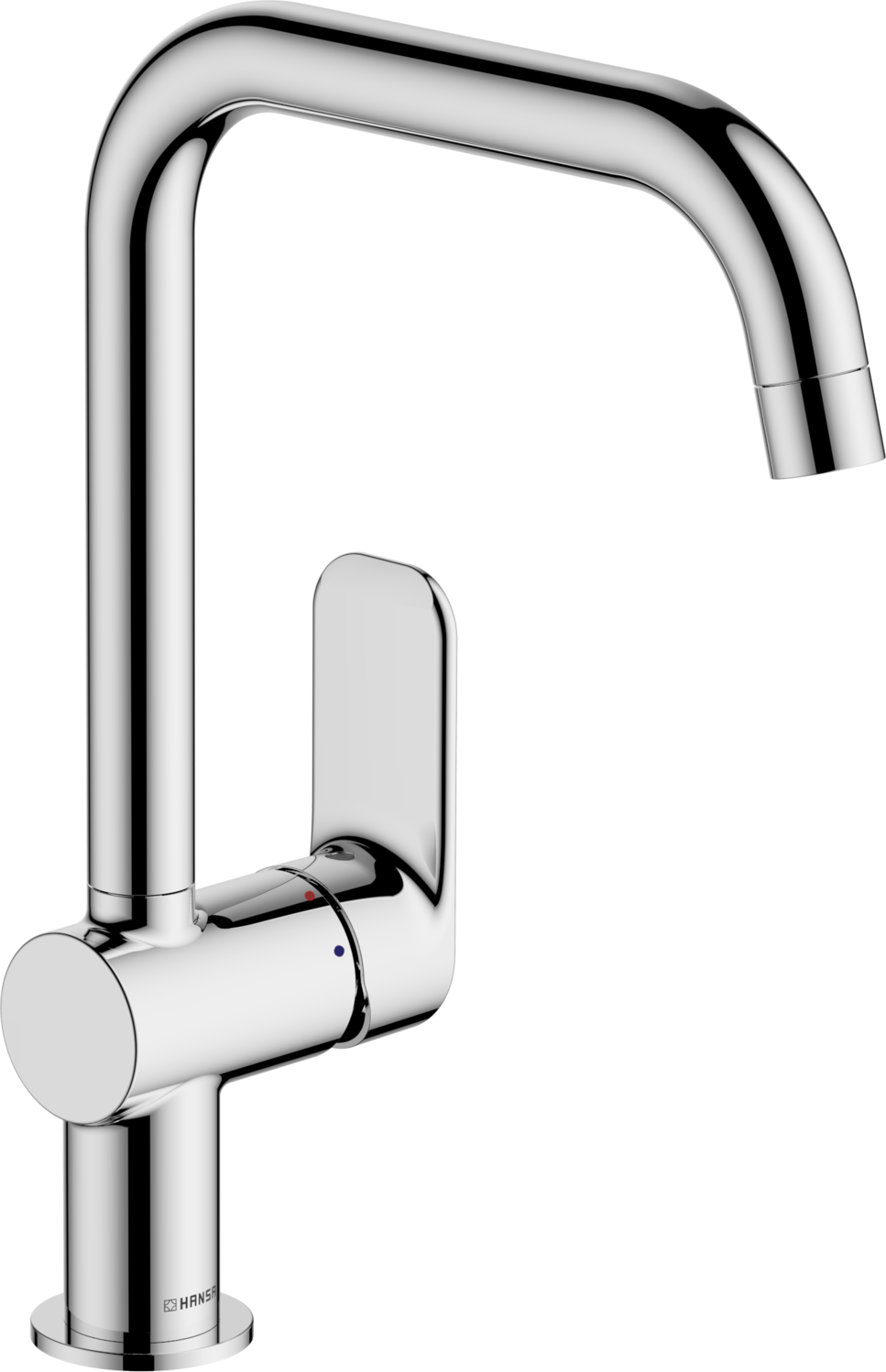

HANSA Hansa EHM Kitchen Faucet HANSABASIC Spout 200 mm DN15 Chrome – 5556 2203

GENERAL ATTRIBUTES:
• Product Group: Kitchen faucet
• Installation Type: Deck mounted
• Technical Feature: Single lever mixer, Side operated
• Finish: Chrome
• BIM data available: Yes

PRODUCT PROPERTIES:
• Aerator Type: CASCADE® aerator
• Connection: Connection via flexible pressure hoses
• Installation: 1-hole
• Lever/Handle Type: Single operating lever/handle, Lever with H+C marking
• Spout Type: Swivel spout
• Temperature Settings: Temperature limiter
• Mechanical Parts: ø 3.5 classic control cartridge with ceramic sealing discs for water volume and temperature adjustment
• Special Features: Rapid installation system

FLOW PROPERTIES:
• Flow at 300 kPa: 12.00 l/min

REGULATIONS / STANDARDS:
• EN Standard: EN 817
• Noise Class: I (ISO 3822)

APPROVALS:
• DVGW: DW-6506DO0165
• ABP: P-IX 10076/IA

TECHNICAL PROPERTIES:
• DN Size: DN15
• Projection: 200 mm
• Spout Swivel Range: 120
• Material: Brass
• Hot Water Supply: max. +70C
• Working Pressure: 50 - 1000 kPa
• Connection Size: G3/8
• Backflow prevention (EN1717): AA

LOGISTICS:
• Gross Weight: 1.821 kg
• Packaging Dimensions: 450 x 270 x 85
