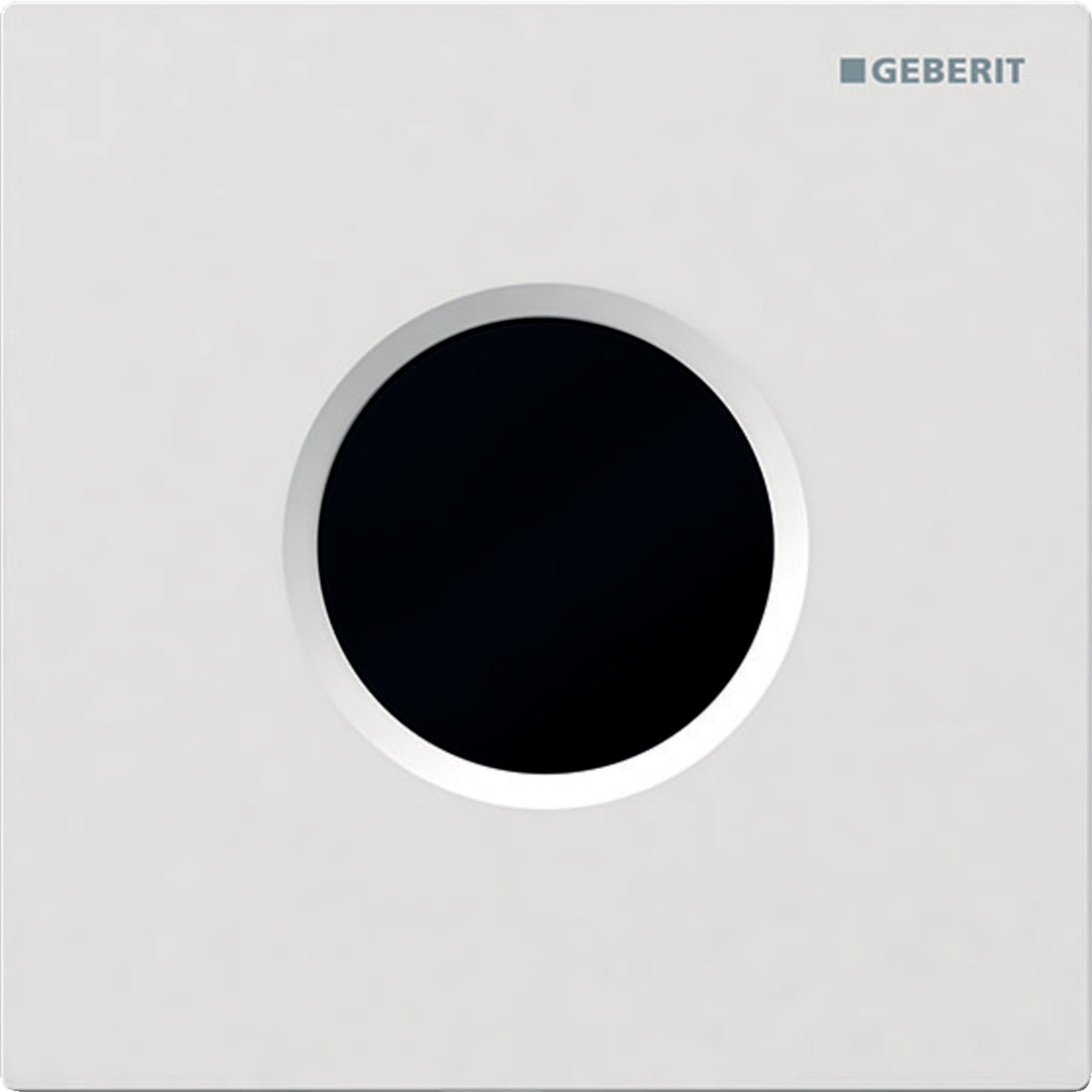

GEBERIT GE Urinal Control Type01 IR Battery White – 116.031.11.5

Geberit urinal control with electronic flush actuation, battery-operated, Type 01 cover plate, roundApplication purposesFor automatic flush actuation for urinalsFor installation in installation sets for Geberit urinal controls (from year of manufacture 2009)CharacteristicsCover plate with safety barReliable IR distance detectionIR sensor self-adjustingInfrared user detection with background maskingWater-saving hybrid mode adjustableFlush time adjustableInterval flush adjustableDynamic flush time adjustmentPre-flush adjustableCan be switched to operation with lid urinalOne-time flush after power supply activationBattery operatedFunctions can be set and queried with Geberit Service HandyDevice settings and operation with mobile device via integrated Bluetooth interfaceCompatible with Geberit Control AppWired networking with Geberit Gateway via GEBUS converterWireless networking with Geberit Gateway via BluetoothCompatible with Geberit ConnectLow battery warningValve closing function when battery is emptyFlush volume can be reduced to 0.5 l per flush via throttle screw of the installation setValve group II according to DIN 4109Color / surfaceColor: whiteTechnical dataBattery type: Alkaline (1.5 V AA)Service life of included battery (years): 2 yearsProtection class: IP45Operating voltage (V DC): 3 V DCFlow pressure (bar) - min. to max.: 1–8 barTest pressure water (bar) - max.: 16 barTest pressure air / inert gas (bar) - max.: 3 barWater temperature (°C) - max.: 30 °CFlow rate at 1 bar without flow limiter (l/s): 0.3 l/sFlow rate at 1 bar with flow limiter (l/s): 0.18 l/sMinimum flow pressure for calculated flow rate (bar): 1 barRelative humidity (%) - min. to max.: max. 100 %Calculated flow rate (l/s): 0.23 l/sInterval flush setting range (h): 1–168 hInterval flush factory setting (h): 24 hInterval flush time setting range (s): 3–180 sInterval flush time factory setting (s): 5 sDwell time setting range (s) - min. to max.: 3–15 sDwell time factory setting (s): 7 sFlush time setting range (s): 1–15 sFlush time factory setting (s): 7 sButton shape: roundDetection range (mm) - min. to max.: 50–1200 mmDie-cast zincPower consumption (W): max. 0.5 WAdditional scope of deliveryType 01 cover plate, IR window roundInfrared control, pre-mounted on mounting frameSolenoid valveBattery compartment2 AA 1.5 V alkaline manganese batteriesFastening material
