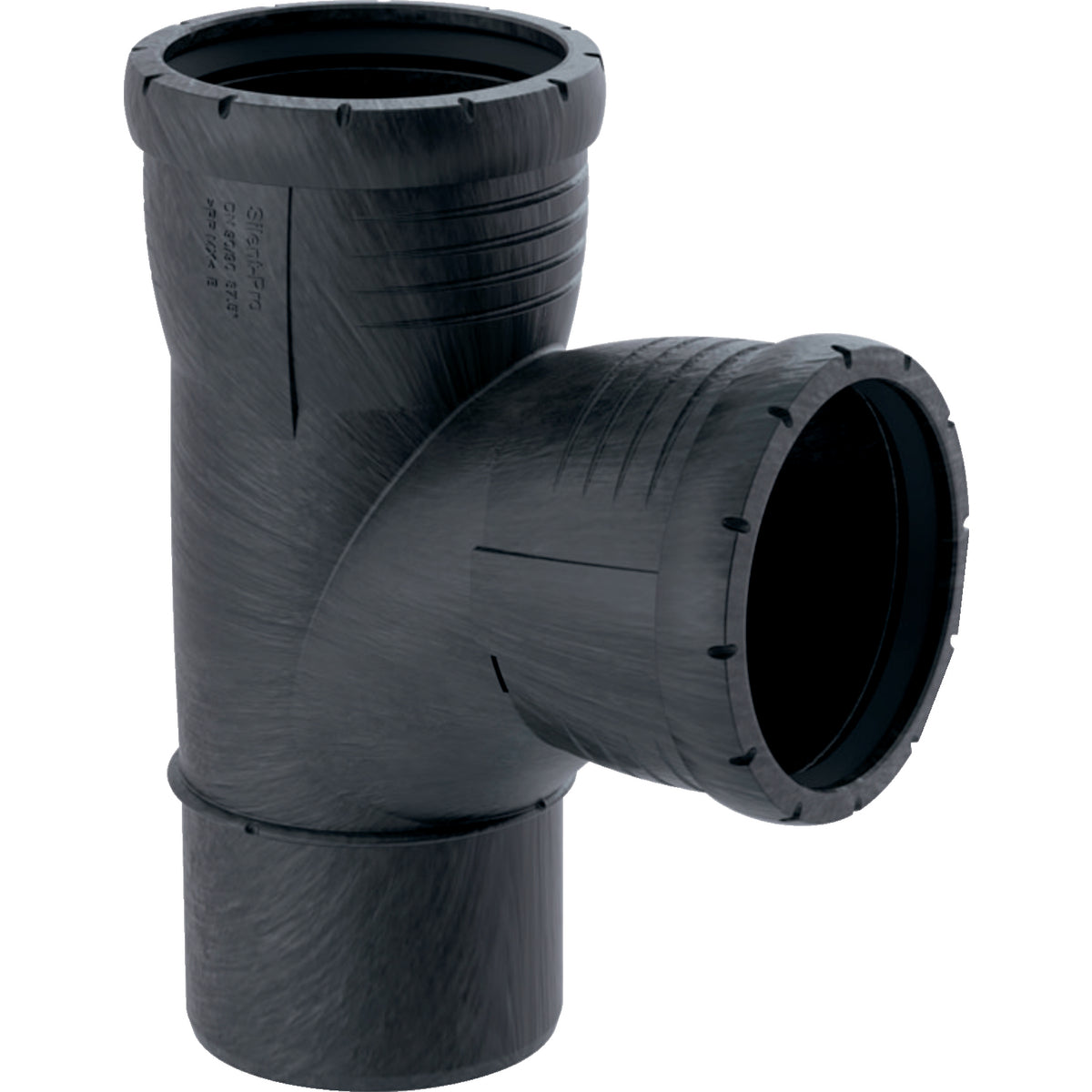

GEBERIT GE Silent-Pro Branch Bend 87.5 Deg. d110/110mm – 393.555.14.1

Geberit Silent-Pro Bend Branch 87.5°
Usage Purposes
For discharging wastewater within buildings
For buildings with increased sound insulation requirements
Characteristics
Highly sound-insulating
With internal radius
EPDM seal
Technical properties
Installation temperature (°C) - min. to max.: -10 – +40 °C
Material: PP-MX
Thermal expansion (mm/(m·K)): 0.08 mm/(m·K)
Shape: Bend branch
d, ø / Outer diameter (mm): 110 mm
d1, ø / Outer diameter (mm): 110 mm
arc / Angle (°): 87.5 °
H / Height (cm): 21.2 cm
Z1 / Z-dimension (cm): 8.2 cm
Z2 / Z-dimension (cm): 7.7 cm
Z3 / Z-dimension (cm): 6.1 cm
