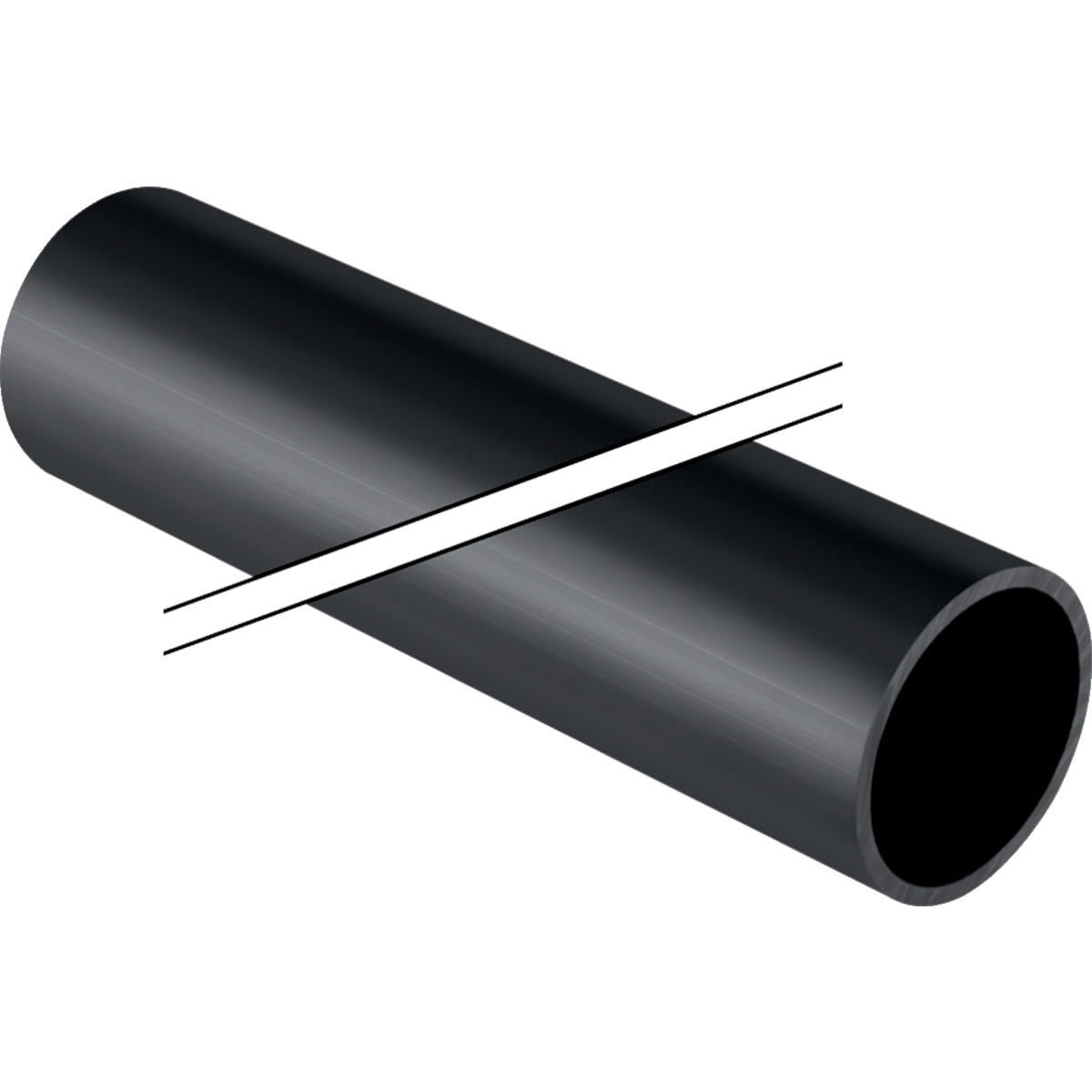

GEBERIT GE Silent-db20 Pipe d160x300mm, PE-S2 – 315.001.14.1

Geberit Silent-db20 PipeApplicationsFor building drainageFor buildings with increased sound insulation requirementsCharacteristicsHighly sound-insulatingTechnical propertiesStorage temperature (°C) - min. to max.: max. 40 °CMaterial: PE-S2Thermal expansion (mm/(m·K)): 0.17 mm/(m·K)Thermal conductivity pipe (W/(m·K)): 0.43 W/(m·K)d, ø / Outer diameter (mm): 160 mmdi, ø / Inner diameter (mm): 146 mms / Wall thickness (mm): 7 mmL / Length (m): 3 mA² / Clear cross-sectional area (cm²): 167.4 cm²
