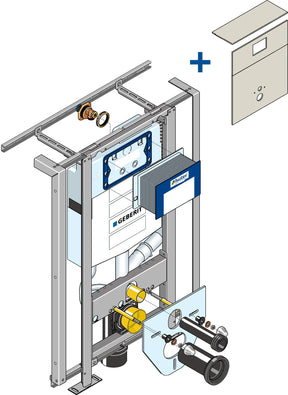

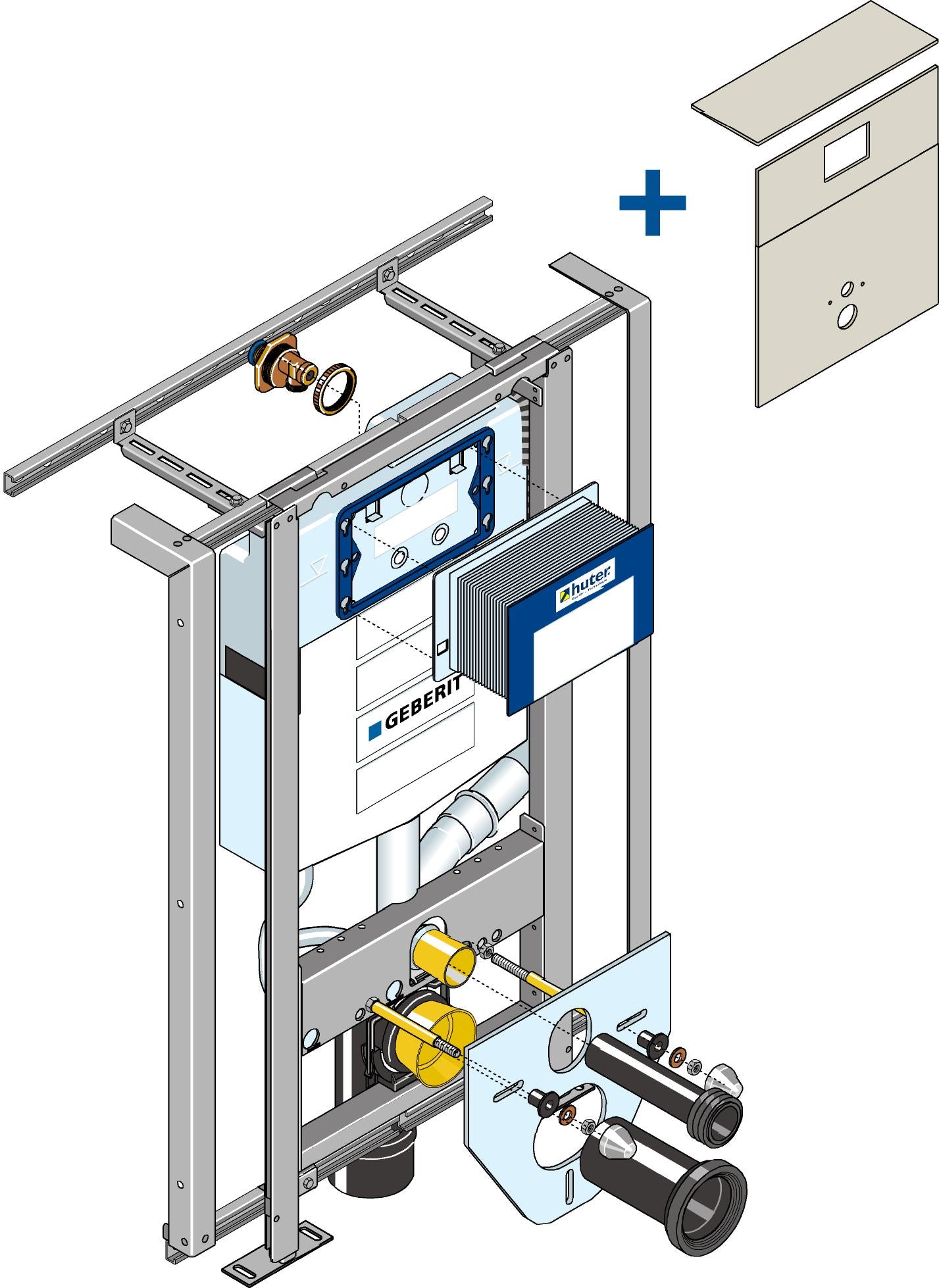

GEBERIT GE Huter Installation Element WWC UP320 Reno for Solid Construction, with Paneling – HU-WC1114-G

Huter Matro Element for wall-mounted WCs, 115 cm, with Sigma UP cistern 12 cm, for renovation, with panellingApplicationsFor wet-masonry wallsFor installation in partial-height pre-wall installationsFor installation in narrow spaces and nichesFor side fastening to room-height installation wallsFor wall-mounted WCs with connection dimensions according to EN 33:2011For wall-mounted WCs with projection up to 62 cmFor single-flush, dual-flush or stop-and-go flushingFor floor constructions 0–20 cmFeaturesGalvanised mounting frameWidth adjustableDepth adjustableMounting possible without rear wall fasteningIntegrated panelling supportFrame prepared for supports for WC ceramics with small contact surfaceFoot supports with slip resistanceFootplate depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system railsConnection bend can be mounted tool-free in various depth positions, adjustment range 45 mmSound-insulated fastening of connection bendUP cistern with front actuationUP cistern insulated against condensationMounting and maintenance work on the UP cistern without toolsWater connection at the rear or top centreWith conduit pipe for water supply for Geberit AquaClean shower WCs and for connection cableTechnical propertiesFlow pressure (bar) - min. to max.: 0.1–10 barWater temperature (°C) - max.: 25 °CFlush volume factory setting (l): 6 / 3 lLarge flush volume adjustment range (l): 4 / 4.5 / 6 / 7.5 lSmall flush volume adjustment range (l): 2–4 lMaterial: SteelHeight adjustable: NoW / Width (cm): 80 cmH / Height (cm): 115 cmD / Depth (cm): 14 cmAdditional scope of deliveryWater connection R 1/2", MasterFix and MeplaFix capable, with integrated angle stop valve and handwheelBuilding protection for service openingConnection set for WC, ø 90 mmConnection bend 90° made of PE-HD, ø 90 mmTransition sleeve made of PE-HD, ø 90 / 110 mm2 protective plugs2 threaded rods M12Cut-to-size panellingFastening material
