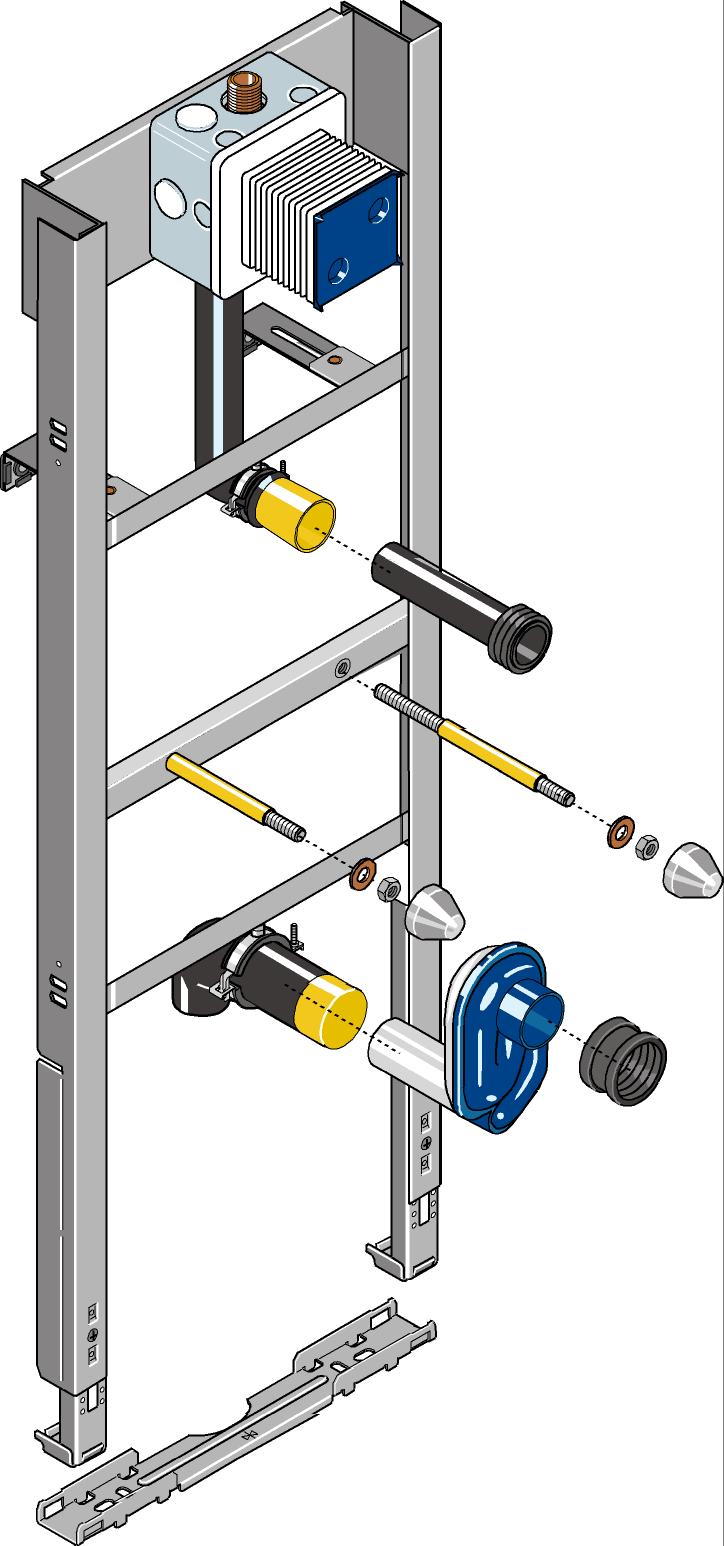

GEBERIT GE Huter Installation Element for Urinal Caprino 4106.1, GE Raw Set – HU-UR3020.1-10G

Huter Matro Element for Urinal, 139 cm, Caprino 4406Application purposesFor drywallFor solid wallsFor installation in partial or room-height pre-wall installationsFor installation in room-height installation wallsFor the installation of Geberit urinal controlsFor floor constructions 0–24 cmPropertiesGalvanized mounting frameFastening for connection bend height-adjustable and sound-insulatedProtection plugs for one-time pressure test with cold water up to max. 15 bar / 1500 kPaTechnical propertiesFlow pressure (bar) - min. to max.: 1–8 barTest pressure water (bar) - max.: 16 barTest pressure air / inert gas (bar) - max.: 3 barWater temperature (°C) - max.: 30 °CFlow rate at 1 bar without flow limiter (l/s): 0.3 l/sFlow rate at 1 bar with flow limiter (l/s): 0.18 l/sMaterial: SteelHeight adjustable: NoW / Width (cm): 42 cmH / Height (cm): 139 cmD / Depth (cm): 10 cmAdditional scope of deliveryWater connection R 1/2"Site protection for service opening, with cover2 fastening bracketsInlet setUrinal siphon with suction functionProtection plugConnection bend made of PE-HD, ø 63 / 50 mmProtective capGasket ø 57 / 50 mm2 threaded rods M8Mounting railFastening material
