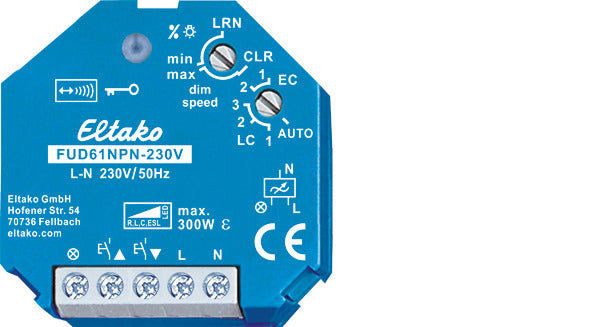

ELTAKO Wireless Universal Dimmer 230V. Power MOSFET 300W – 30100835

Universal dimmer switch, power MOSFET up to 300W. Automatic lamp detection. Stand-by loss only 0.7 watts. Minimum brightness or dimming speed adjustable. With nursery, snooze, and light alarm clock circuit. Additionally with light scene control. Encrypted wireless, bidirectional wireless, and repeater function can be switched on. For flush mounting. 45mm long, 45mm wide, 33mm deep. Universal dimmer switch for lamps up to 300W, depending on ventilation conditions. Dimmable 230V LED lamps and dimmable energy-saving lamps (ESL) additionally dependent on the lamp electronics and the type of dimming. Zero-crossing switching with soft on and soft off for lamp protection. Local supply, switching, and control voltage 230V. No minimum load required. The set brightness level is stored when switched off (memory). In the event of a power failure, the switching position and brightness level are stored and, if necessary, switched on when the supply voltage returns. Automatic electronic overload protection and overtemperature shutdown. Encrypted sensors can be taught in. Bidirectional wireless and/or a repeater function can be switched on. Every change of state as well as received central control telegrams are then confirmed with a wireless telegram. This wireless telegram can be taught into other actuators such as FSR61NP-230V, controllers, and universal displays. In the respective app, the current dimming value in % is also displayed. With the upper %lamp/dim speed rotary switch, either the minimum brightness (fully dimmed) or the dimming speed can be set. The lower rotary switch determines during operation whether the automatic lamp detection should be active or special comfort settings: AUTO allows dimming of all lamp types. LC1 is a comfort setting for dimmable 230V LED lamps that cannot be dimmed far enough in AUTO (trailing edge) due to their design and must therefore be forced to leading edge. LC2 and LC3 are comfort settings for dimmable 230V LED lamps like LC1, but with different dimming curves. EC1 is a comfort setting for energy-saving lamps that, due to their design, must be switched on with an increased voltage so that they can be reliably switched on again even when dimmed and cold. EC2 is a comfort setting for energy-saving lamps that cannot be switched on again when dimmed due to their design. Therefore, memory is switched off in this position. In positions LC1, LC2, LC3, EC1, and EC2, no inductive (wound) transformers may be used. Furthermore, the maximum number of dimmable LED lamps may be lower due to the design than in the AUTO position. The pushbuttons can be taught in either as directional pushbuttons or as universal pushbuttons: As a directional pushbutton, one side is for switching on and dimming up, and the other side is for switching off and dimming down. A double click on the switch-on side triggers automatic dimming up to full brightness at dim-speed. A double click on the switch-off side triggers the snooze circuit. The nursery circuit is executed on the switch-on side. As a universal pushbutton, the direction is reversed by briefly releasing the pushbutton. Light scene control, light alarm circuit, nursery circuit, and snooze circuit according to the operating instructions. The LED accompanies the teaching-in process according to the operating instructions and indicates wireless control commands by briefly flashing during operation.
