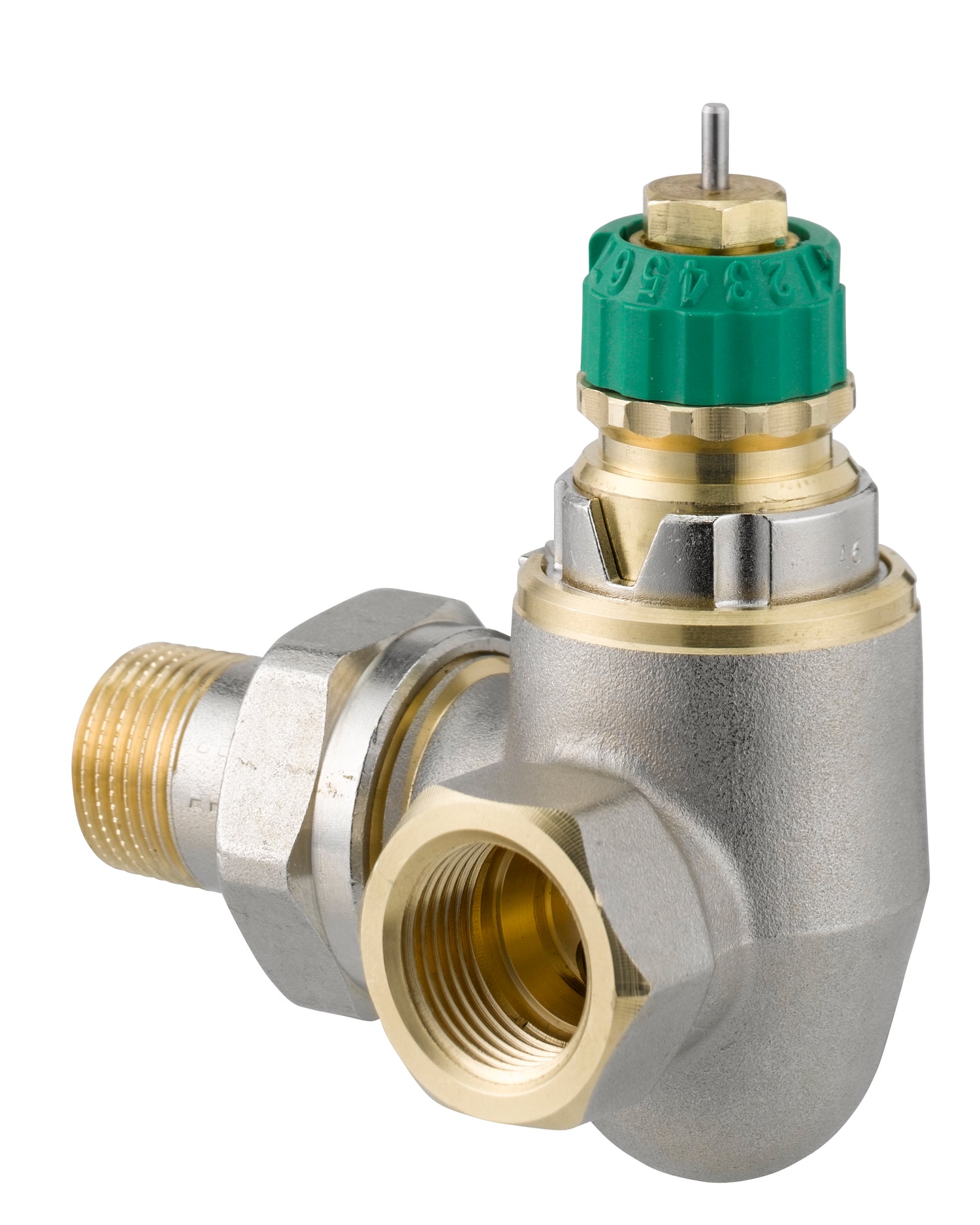

DANFOSS Danfoss Dynamic Valve RA-DV 15 pressure-independent, R 1/2, port left, nickel-plated – 013G7720
€ 40,23 exkl. USt.
DANFOSS Danfoss Dynamic Valve RA-DV 15 pressure-independent, R 1/2, port left, nickel-plated – 013G7720 is backordered and will ship as soon as it is back in stock.
Danfoss Dynamic Valve RA-DV
pressure-independent, pre-settable valve body according to DIN EN 215 CEN,
water volume limitation with pre-setting by cam disc and optical setting control,
with integrated differential pressure regulator for constant water volumes,
brass housing, for threaded and compression connections, gland packing replaceable under system pressure without special tools,
with green protective cap,
pump optimization by differential pressure measurement at the RA-DV
max. operating pressure: 10 bar
max. differential pressure: 0.6 bar*
min. differential pressure: 0.1 bar*
* min. to max. flow rate
max. flow temperature: 95 C
Design: Angle corner left
Connection NW: DN 15
Inlet/Outlet: Rp 1/2, R 1/2
Surface: matt nickel-plated
Setting range: 16 to 135 l/h
Brand: Danfoss
Type: RA-DV 15
Order no.: 013G7720
