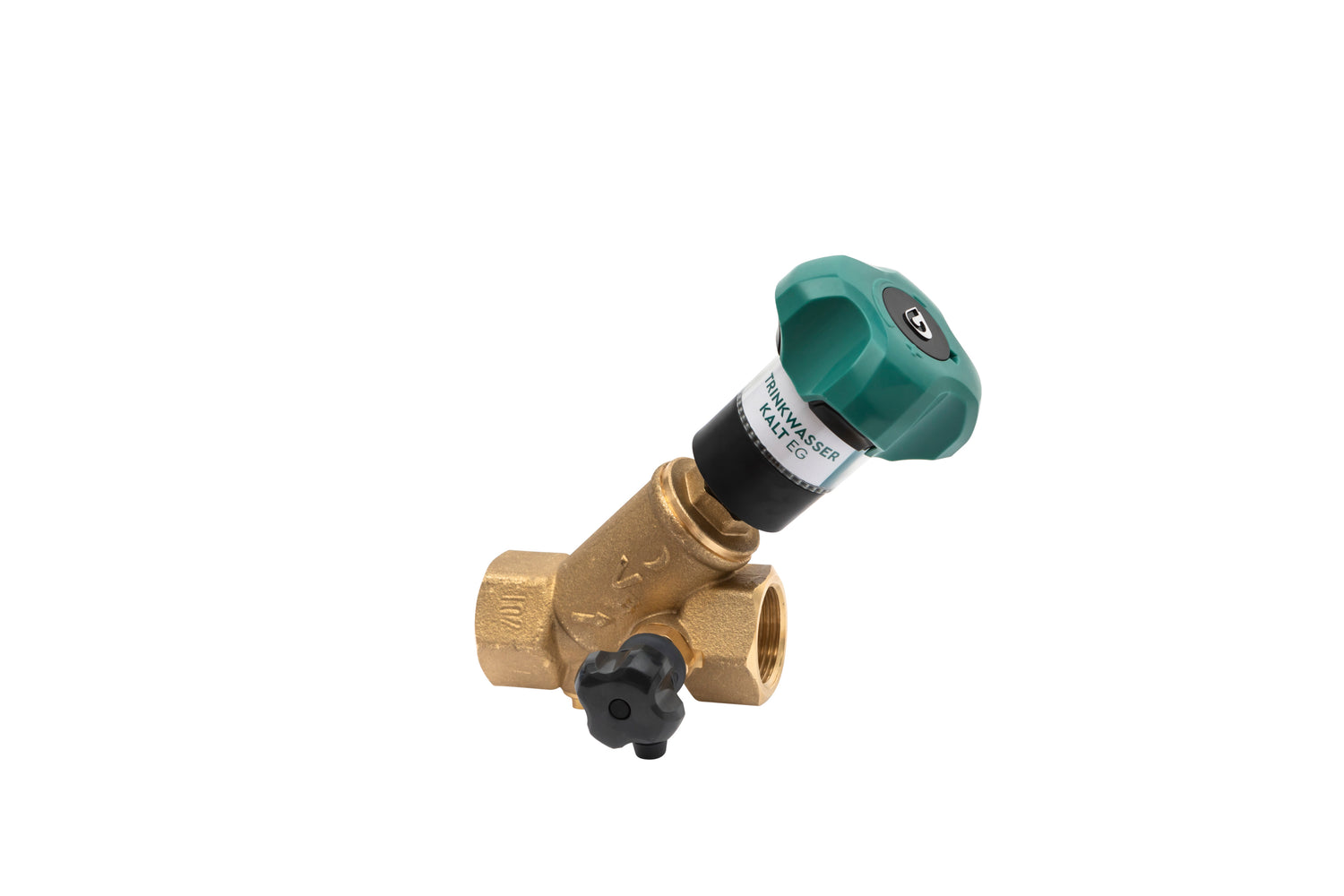

BWT BWT Mondsee Fig. 3508NII-3/4" M Full Bore Valve RV Venting OVGW DVGW M-Clip – 881310

BWT Mondseer Fig. 3508N II free-flow valve, ÖVGW, DVGW, with M-clip, HACCP* -Made of brass gravity die casting according to DIN EN 1982 and 50930-6 -Tested according to ÖNORM EN 1213 and DIN 3502 -Free-flow valve non-return valve with internal thread x internal thread -Non-return valve with stainless steel spring -Brass test plug for functional testing -3D top part with rising spindle -Permanently lubricated by grease chamber construction -Dead space-free in both open and closed state -by triple O-ring sealing -Green handwheel with integrated protective sleeve against contamination -Highest resistance to corrosion due to robust wall thickness and protective casting skin -360 degree rotatable drainage valve BWT Fig. 270 D 1/4' and drainage screw BWT Fig. 272 1/4' -high flow rate -Packaging according to ÖNORM EN 1074-1:2000 -*Produced in accordance with HACCP hygiene standard and hygienically individually packaged
