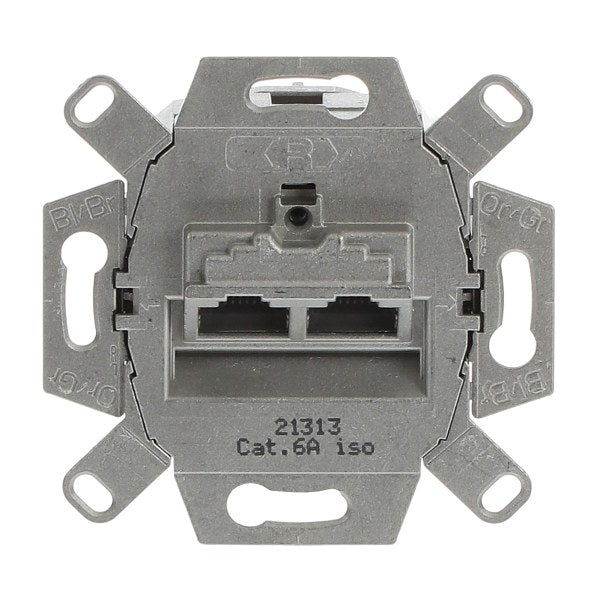

BUSCH-JAEGER UAE Insert Cat. 6A ISO 8x8 0218/12-101 – 2CKA000230A0411

With angled outlet and LSA insulation displacement terminals.
RJ-45 connections for networks according to Cat. 6A, Class EA (10 Gbit/s / 500 MHz).
Complies with Cat. 6A, Class EA according to ISO/IEC 11801:2011-06.
Connection identification A and B according to TIA/EIA-568-B.2.
Design according to EN 60 603-7-51:2011-01.
Shielding according to DIN EN 55022, Class B.
Up to 500 MHz on all wire pairs.
Suitable for 10-Gigabit Ethernet.
Suitable for PoE+ according to IEEE 802.3at, ≥ 1000 mating cycles.
Flexible cable entry from all sides without kinks.
Housing earthing possible via 6.3 mm flat connector at the rear.
Re-embedded tested.
Suitable for mix-and-match use.
Suitable for RJ11, RJ12 and RJ45 plugs.
For data cables with a diameter of 6-10 mm.
For installation in cable ducts, flush-mounted device boxes and underfloor systems.
For wires from AWG 24-22.
Without spreader.
Mounting depth 31 mm.
Matches central plate 1803-02-xxx.
Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-axcent®, solo®, pur edelstahl, carat®, Busch-dynasty®, alpha, impuls
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - genuine material, future®, future® linear, Busch-axcent®, Busch-axcent® pur
