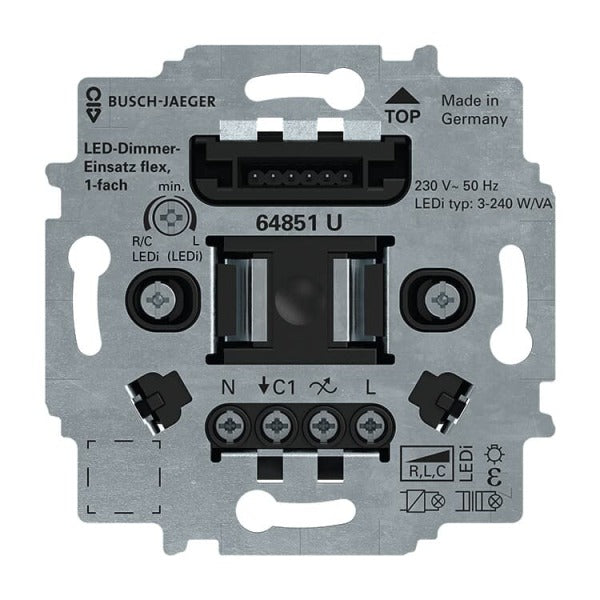

BUSCH-JAEGER LED Dimmer Insert flex 1-gang 64851 U – 2CKA006500A0012

2-wire connection technology (neutral conductor not required).
Neutral conductor can be connected optionally (recommended when connecting low loads, < 10 W/VA).
For dimming lighting systems.
Operation in two-way circuits via push-button auxiliary unit possible.
Operation also possible via conventional push-buttons (2020 US, 2021/6 UK).
Optimized for dimming retrofit LED lamps (LEDi).
For dimmable retrofit LED lamps (LEDi) with conventional or electronic transformers.
For incandescent lamps, 230 V halogen incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable halogen energy-saving lamps.
Mixed load operation of LEDi and conventional lamps possible.
With manually adjustable operating mode: leading-edge / trailing-edge.
With adjustable minimum brightness.
With light value memory and minimum brightness memory.
Low noise thanks to the use of MOSFET transistors.
Short-circuit proof and overload protected (electronic fuse).
Without operating element.
For operating element flex, 1-gang, 64711 and Wireless, 62711-WL.
For operating element flex, 2-gang, 64721 and Wireless, 62721-WL.
For operating element Busch-Trevion® Keypad KK/U4.xx.11.
For Busch-Komfortschalter® flex operating element 64765-...
For Busch-Wächter® 180 flex sensors 6476x-...
For Busch-Wächter® 180 flex sensors, Wireless, 6276x-…-WL.
For Busch-Präsenzmelder flex sensors 6475x-...
Can be combined with auxiliary unit insert flex, 64891 U.
Outputs: 1x dimming channel

Rated power: 3 - 100 W/VA (LEDi - leading-edge)
Rated power: 3 - 240 W/VA (LEDi - trailing-edge)
Rated power: 10 - 240 VA (non-LED loads)
For conventional transformers, consider ~20% transformer losses.
For electronic transformers, consider ~5% transformer losses.

The insert can be used via a wireless sensor in Busch-flexTronics® wireless or Busch-free@home® wireless.
Installation in flush-mounted boxes according to DIN 49073 required.
Design line: Platform 63, Busch-balance® SI, Reflex SI, Busch-Duro 2000® SI, Busch-art linear®, future® linear, Busch-axcent®, pur edelstahl, solo®, carat®, Busch-dynasty®, Busch-Trevion®
Design line variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-axcent®, Busch-axcent® pur
Product series: Busch-flexTronics®, Busch-flexTronics® Wireless, Busch-free@home® Wireless, Busch-free@home®
