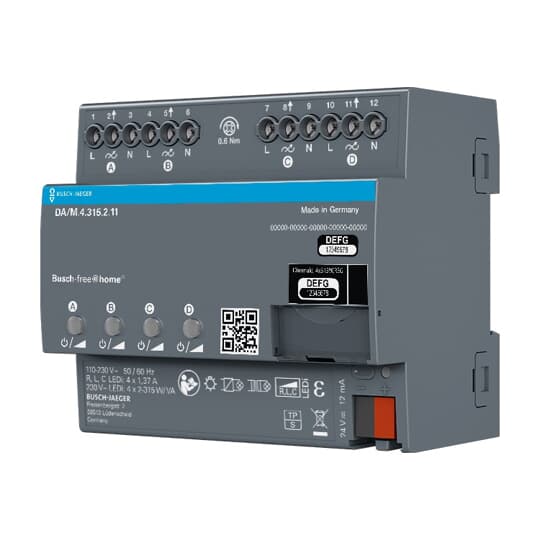

BUSCH-JAEGER Dimming actuator 4-gang REG 315W DA/M.4.315.2.11 – 2CKA006220A0837

Multi-channel universal dimming actuator optimized for dimming retrofit LED lamps (LEDi). Also suitable for dimming incandescent lamps, low-voltage halogen lamps with conventional or electronic transformers, 230 V halogen lamps, and dimmable halogen energy-saving lamps. Automatic load detection (can be deactivated). Separate N-terminal per channel. Parallel connection of outputs possible to increase output power. Outputs can be connected in parallel in groups. Minimum load: 2W. Manual operation on the device is possible even without bus voltage or in an unprogrammed state. Device programming is possible even without an active 230V supply voltage. Extensive test and diagnostic functions via the i-bus tool. Fast parameterization in ETS using copyable channel templates. With integrated bus coupler. Rated power at 230 V~ mains voltage: 230 V~ incandescent and halogen lamps: 4 x 315 W/VA to 2 x 500 W/VA in trailing-edge mode, 4 x 120 W/VA to 2 x 200 W/VA in leading-edge mode. Dimmable 230 V~ LEDi: 4 x 315 W/VA to 2 x 500 W/VA in trailing-edge mode, 4 x 120 W/VA to 2 x 200 W/VA in leading-edge mode. Inductive L-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500W/VA. Electronic C-transformers with LED/low-voltage halogen lamp: 4 x 315 W/VA to 2 x 500 W/VA. Electronic LC-transformers with LED/low-voltage halogen lamp: 4 x 120 W/VA to 2 x 200 W/VA. If required, please refer to the current online catalog for software and description. 1 TE ≙ 18 mm. Recommendation: Always use lamps of the same type and manufacturer.
