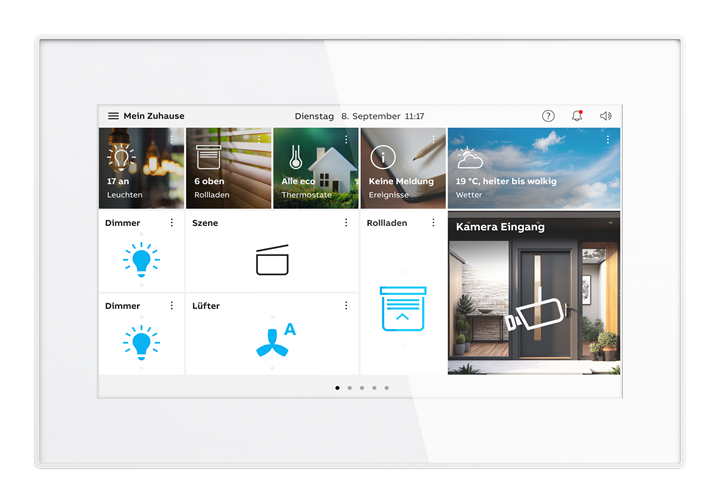

BUSCH-JAEGER Busch-OneTouch 7 white M2249-2W-03 – 2TMA320050W0001

Central control panel for Busch-Welcome® 2-wire with integrated Busch-free@home® wireless System Access Point. Full range of functions for wireless devices as with the SAP/S.13. Enables commissioning and remote control of a Busch-free@home® Wireless system and access to Busch-Welcome® 2-wire door communication. free@home functions: Supports up to 150 Busch-free@home® wireless participants. With integrated Busch-free@home® wireless antenna. Busch-free@home® commissioning is carried out via web interface or app. No additional commissioning software is required. Simple Busch-free@home® commissioning via WLAN Ad-hoc mode. Connection to the home network as WLAN client mode or via CAT cable (LAN adapter included in scope of delivery). Can also be used as a standalone Busch-free@home® panel in combination with an external Busch-free@home® System Access Point. The integrated Busch-free@home® System Access Point is not used when paired with an external System Access Point. With integrated room temperature controller and temperature sensor. Busch-Welcome functions: Display of the video image from the outdoor station. During the conversation, an image of the visitor can be taken and stored in the image memory. When door calls occur in absence, three images of the visitor are automatically stored in the image memory. Different ringtones for door and floor calls can be set, five polyphonic ringtones are available. Volume of ringtones adjustable. Equipped with an induction loop for coupling the audio signal into hearing aids. With hands-free function, hands-free volume adjustable. Possibility to pair and display ONVIF IP cameras. App Integration: Enables the integration of tablets or smartphones with the installed Busch-free@home® next APP or Busch-Welcome® App as a mobile indoor station for audio and video communication, and for remote control of the Busch-free@home® Wireless System. Up to 10 mobile devices can be linked. Please refer to our my.Busch-Jaeger licensing model. Further information can be found at my.busch-jaeger.de Power supply: Via Busch-Welcome® 2-wire bus (consumption units: 14). Alternatively via Power-over-Ethernet (PoE IEEE 802.3) af or external power supply 20-32 V DC (SELV). Rated current: 400 mA (24V DC). WLAN (IEEE 802.11a/b/g/n/ac). Technical details: Display resolution: 1024x600 Screen: IPS For flush-mounted installation with 42491F For surface-mounted installation with 42491S-x For table mounting with 83506
