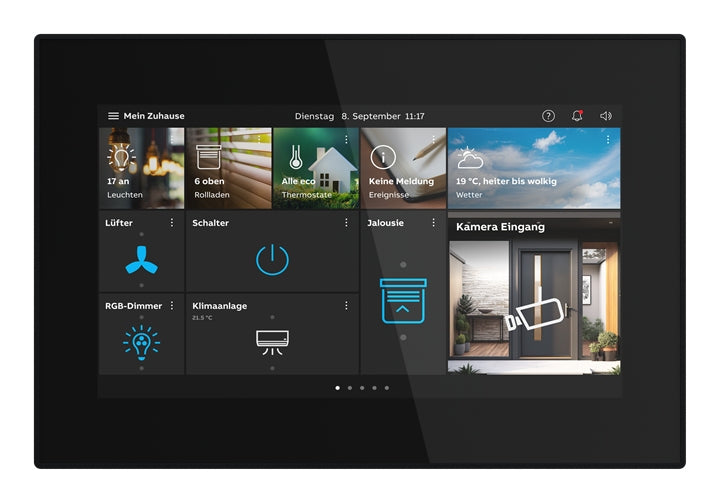

BUSCH-JAEGER Busch-OneTouch 7 Black M2249-2B-03 – 2TMA320050B0001

Central 7" control panel for Busch-Welcome® 2-wire or Busch-Welcome IP with integrated Busch-free@home® wireless System Access Point.
Enables commissioning and remote control of a Busch-free@home® Wireless system as well as access to Busch-Welcome® door communication.
With integrated APP interface for the Busch-Welcome® APP and the Busch-free@home® next APP.
Up to 10 mobile devices can be linked.
Supports up to 150 Busch-free@home® Wireless participants.
Automatic display of all Busch-free@home®
Control frames with room structure.
An individual operating page with up to 18 freely configurable control frames.
Maximum of two dashboard pages with up to 12 control frames per page.
Can also be used as a standalone Busch-free@home® panel in combination with an external Busch-free@home® System Access Point.

With integrated room temperature controller and temperature sensor.
Equipped with an induction loop for coupling the audio signal into hearing aids.
Option for coupling and displaying ONVIF IP cameras.

Power supply via the Busch-Welcome® 2-wire bus (consumption units: 14), via Power-over-Ethernet (PoE IEEE 802.3 af) or via external 20-32 V DC (SELV) power supply.

Integration into the home network via LAN or WLAN (IEEE 802.11a/b/g/n/ac).

For flush-mounted installation with 42491F.
For surface-mounted installation with 42491S-x.
For table mounting with 83506.
Product range: Busch-Welcome® 2-wire, Busch-free@home® Wireless, Busch-free@home®
