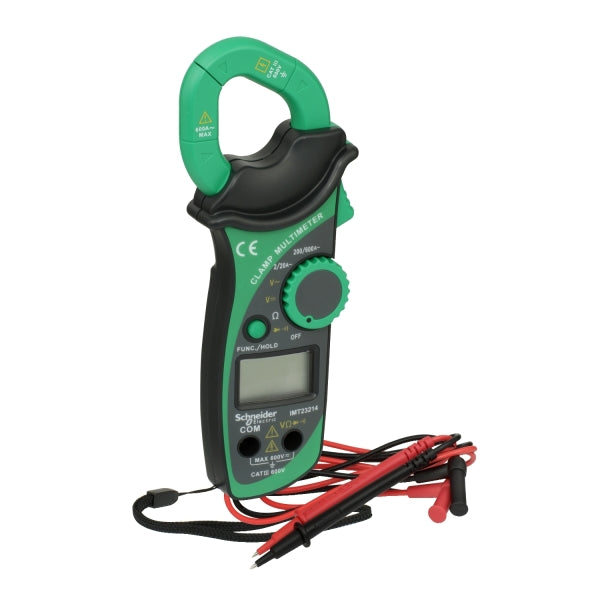

Digital Clamp Meter with LCD Display Category 3 / 600V – IMT23214
€ 47,64 exkl. USt.
Digital Clamp Meter with LCD Display Category 3 / 600V – IMT23214 is backordered and will ship as soon as it is back in stock.
Digital Clamp Meter - Category III - 600 V. A compact digital clamp meter with a 3½-digit display, auto-ranging function for measuring DC and AC voltage, AC current, resistance, diode, and continuity. DC voltage range: 0.2/2/20/200/600 V, AC voltage range: 2/20/200/600 V, AC current: 2/20/200/600 A, Resistance: 2Ohm 2kOhm /20 kOhm /200 kOhm /2 MOhm /20 Mohm. Weight: 160 g (with battery), Dimensions (H x W x D): 190 x 76 x 36 mm. Features: Compact and easy to handle, Data-hold function. Audible continuity, LCD display, Battery status indicator, High-precision measurements, Grip guard for enhanced safety. Continuity: yes, under 30 Ohm, Diode test: approx. 1.5 V, Electrical insulation: IEC 61010, Cat. III 600 V, Power: 2 pieces 3V Type: CR2032 or equivalent.
€ 47,64 exkl. USt.
Digital Clamp Meter with LCD Display Category 3 / 600V – IMT23214 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Temperature measurement TC | No | Rated test voltage 250 V | No |
| Circuit breaker | No | Smallest resolution AC | Other |
| Smallest resistance resolution | Other | Rated test voltage 500 V | No |
| Instantaneous value memory (data hold) | Yes | Measuring range selection | Automatic |
| Max. voltage measuring range AC | 600 V | Rated test voltage 100 V | No |
| Rated test voltage 1000 V | No | Cable length measurement | No |
| Peak value memory | No | Interface | No |
| With display backlight | No | Smallest DC voltage resolution | Other |
| With level measurement (dB) | No | Speed measurement | No |
| Max. current measuring range AC | 600 A | Capacitance measurement | No |
| Continuity test/diode test | No | Power and energy measurement | No |
| Inductance measurement | No | Continuity test | Yes |
| Explosion-proof version | No | Calibration according to ISO/IEC 17025 | No |
| Max. voltage measuring range DC | 600 V | Max. resistance measuring range | 20 MOhm |
| Temperature measurement RTD | No | Rated test voltage 50 V | No |
| Duty cycle measurements | No | IR interface | No |
| Measurement circuit category | CAT III | Rated test voltage 10 V | No |
| Line symmetry test for two-wire connections a-b-E | No | Smallest AC voltage resolution | Other |
| Frequency measurement | No | Harmonic analysis/power quality | No |
| Measurement value memory | No | Relative value measurement | No |
| Maximum value memory | No | Bluetooth interface | No |
| Display | Digital | With conductivity measurement | No |
| Minimum value memory | No | High voltage test for motor windings | No |
| True RMS measurement (TRMS) | No |
