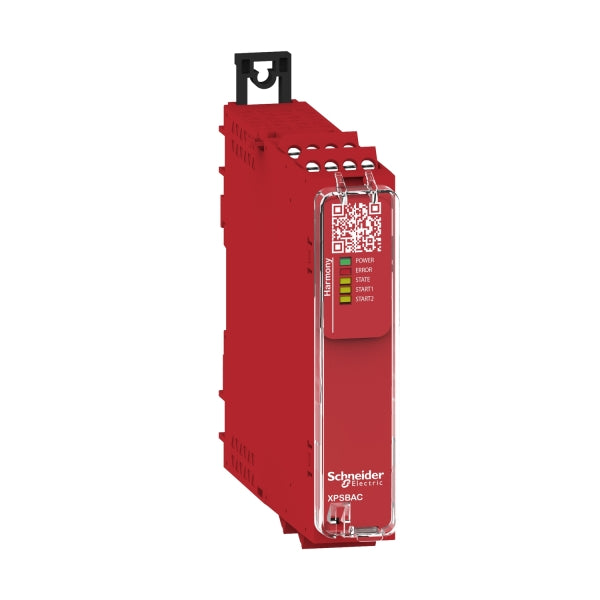

Safety relay, Harmony XPSB, 1 function, 1 circuit, PLe/Cat4/SIL3, 4 NO 2 NC, 24VAC/DC, Screw – XPSBAC14AP
€ 140,97 exkl. USt.
Safety relay, Harmony XPSB, 1 function, 1 circuit, PLe/Cat4/SIL3, 4 NO 2 NC, 24VAC/DC, Screw – XPSBAC14AP is backordered and will ship as soon as it is back in stock.
Harmony XPS Basic safety relays implement basic safety functions. The focus is on classic functions and easy operability with many switching contacts. This safety module can be operated directly without any settings and implements a safety function. For this purpose, the normally closed contacts of emergency stop/stop buttons, position or rope pull switches are integrated into the supply circuit of the safety module. Thus, the safety function can be implemented in single-channel or dual-channel (redundant) versions. For the start function, automatic, manual or monitored start is available at separate inputs. This safety switching device has 4 safe NO relay contacts and 2 NC relay contacts at the output. The supply voltage is 24 VAC/DC and the connections are made via detachable screw terminals. Applications up to safety level PL e in Category 4 or SIL3 can be implemented. A wide range of approvals enables international use. Mounting is done by snapping onto a DIN rail or by screw mounting on mounting plates.
€ 140,97 exkl. USt.
Safety relay, Harmony XPSB, 1 function, 1 circuit, PLe/Cat4/SIL3, 4 NO 2 NC, 24VAC/DC, Screw – XPSBAC14AP is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| With feedback loop | Yes | Type of control voltage 1 | DC |
| Type of operating voltage | DC | Height | 100 mm |
| Safety type in accordance with IEC 61496-1 | 4 | Depth | 120 mm |
| Number of outputs, signalling function, delayed, contact-based | 0 | Number of outputs, signalling function, instantaneous, semiconductor | 0 |
| Number of outputs, safety-related, instantaneous, contact-based | 5 | Width | 22.5 mm |
| With muting function | No | Number of outputs, safety-related, delayed, semiconductor | 0 |
| Rated switching current | 1.1 A | Type of control voltage 2 | DC |
| Control voltage 2 | 24..24 V | Stop category in accordance with IEC 60204 | 0 |
| Control voltage 1 | 24..24 V | Operating voltage DC | 24..24 V |
| With approval for BG BIA | No | With UL approval | No |
| Number of outputs, safety-related, instantaneous, semiconductor | 0 | Performance level in accordance with EN ISO 13849-1 | Level e |
| SIL in accordance with IEC 61508 | 3 | Suitable for monitoring emergency stop circuits | Yes |
| Supply voltage DC | 24..24 V | Power consumption | 1.1 W |
| With start input | Yes | Suitable for monitoring magnetic switches | No |
| Suitable for monitoring opto-electronic protective equipment | No | Suitable for monitoring position switches | Yes |
| Evaluation of inputs | two-channel | Suitable for monitoring tactile sensors | No |
| Suitable for monitoring valves | No | With removable clamps | Yes |
| Suitable for DIN rail mounting | Yes | Design | Basic unit |
| Type of supply voltage | DC | Type of electrical connection | Screw connection |
| Suitable for monitoring proximity switches | No | Number of outputs, safety-related, delayed, contact-based | 0 |
| Number of outputs, signalling function, instantaneous, contact-based | 0 | Number of outputs, signalling function, delayed, semiconductor | 0 |
