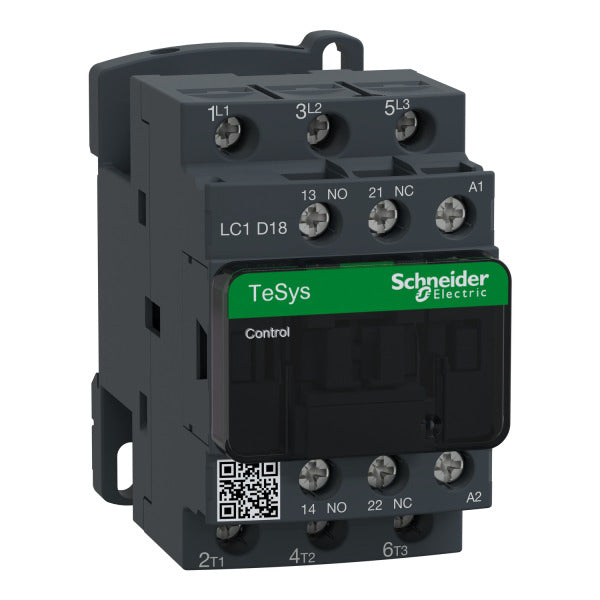

Contactor, 3P+1NO+1NC, 7.5kW/400V/AC3, 18A, Coil 240V 50/60Hz – LC1D18U7
€ 53,88 exkl. USt.
Contactor, 3P+1NO+1NC, 7.5kW/400V/AC3, 18A, Coil 240V 50/60Hz – LC1D18U7 is backordered and will ship as soon as it is back in stock.
TeSys LC1D Contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 7.5 kW, rated operating current Ie at AC-3, 400 V 18 A, coil 240 V AC. Dimensions (WxHxD) 45x77x86 mm, weight 0.33 kg. Category AC-3, AC-1, AC-4. without integrated wiring module. Quick and easy setup. Safe and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically linked contacts and mirror contacts. Certifications according to UL, DNV, RINA, GOST, LROS (Lloyds register of shipping), CCC, CSA, GL, BV. Product standards according to
€ 53,88 exkl. USt.
Contactor, 3P+1NO+1NC, 7.5kW/400V/AC3, 18A, Coil 240V 50/60Hz – LC1D18U7 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Number of auxiliary contacts as N/C contact | 1 | Rated operational power at AC-3, 400 V | 7.5 kW |
| Height | 77 mm | Number of N/O contacts as main contacts | 3 |
| Rated operational power at AC-4, 400 V | 4 kW | Type of voltage for actuation | AC |
| Rated operational current Ie at AC-1, 400 V | 32 A | Operating voltage AC 50 Hz | 440..440 V |
| Rated operational current Ie at AC-3, 400 V | 18 A | Rated operational current Ie at AC-4, 400 V | 9 A |
| Rated control supply voltage AC 60 Hz | 240..240 V | Width | 45 mm |
| Suitable for series installation | No | Operating voltage AC 60 Hz | 440..440 V |
| Depth | 86 mm | Rated control supply voltage AC 50 Hz | 240..240 V |
| Type of connection main circuit | Screw connection | Number of N/C contacts as main contacts | 0 |
| Number of auxiliary contacts as N/O contact | 1 |
