ELSO
Art.Nr: 15432828944715

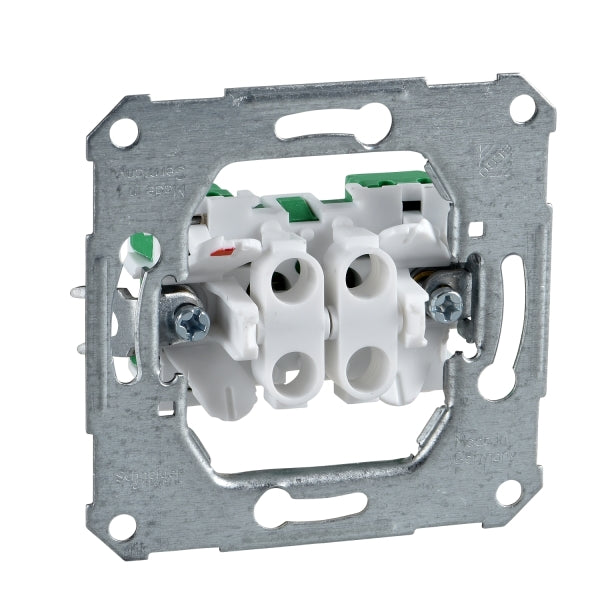

Series switch insert terminal 10A – 111500
Regular price
Regular price
€ 13,83
inkl. USt.
€ 11,53 exkl. USt.
€ 11,53 exkl. USt.
Unit price
Verfügbarkeit wird geladen …
Series switch insert terminal 10A – 111500 is backordered and will ship as soon as it is back in stock.
Switches 10 A 250V AC push-in terminals clamping range for information cables from cable diameter 0.5mm, for copper conductors 1.5 mm² and 2.5 mm² series switch.
ELSO
Art.Nr: 15432828944715
Regular price
Regular price
€ 13,83
inkl. USt.
€ 11,53 exkl. USt.
€ 11,53 exkl. USt.
Unit price
Series switch insert terminal 10A – 111500 is backordered and will ship as soon as it is back in stock.
Installation anfragen
Montage • Elektro • Inbetriebnahme
Wir bieten die Installation deiner Photovoltaikanlage durch unser Team sowie durch ausgewählte Partnerbetriebe an. Gemeinsam sorgen wir für eine fachgerechte Montage, Elektroinstallation und zuverlässige Inbetriebnahme.
Installation anfragen
Datenblatt
Hinweis: Der Link kann je nach Hersteller direkt einen Download starten.
Technische Parameter
Technische Parameter
| Circuit type | 2-pole switch | Operating method | Rocker/button |
| Assembly | Basic element with central cover plate | Number of modules (for modular design) | 0 |
| Push button switch | No | Number of rocker switches | 1 |
| Mounting method | Flush-mounted | Type of fastening | Claw/screw fixing |
| With mounting plate | Yes | Halogen-free | Yes |
| Surface protection | Untreated | Text field/labeling area | No |
| Lighting | No | Suitable for degree of protection (IP) | IP20 |
| Nominal voltage | 250 V | Rated current | 10 A |
| Switching current for fluorescent lamps | 10 AX | Feedback contact | No |
| Connection type | Plug-in terminal | Washing machine switch | No |
| Device width | 71 mm | Device height | 71 mm |
| Device depth | 37 mm | Installation depth | 28 mm |
| Min. depth of device box | 40 mm | Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No | Compatible with Amazon Alexa | No |
| IFTTT support available | No |
