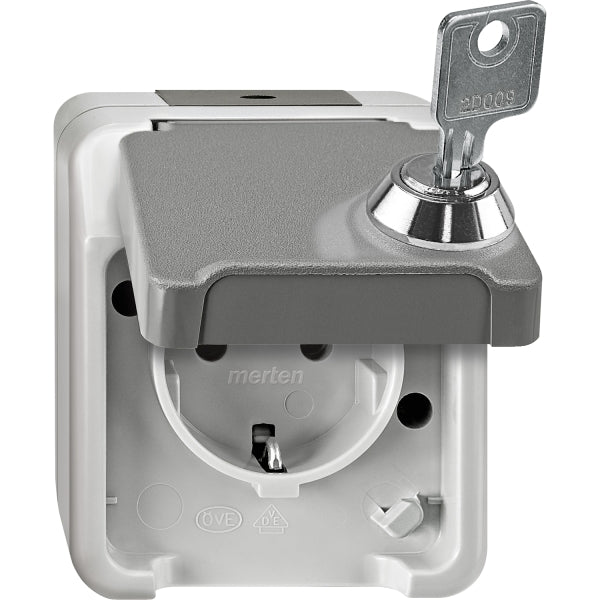

SCHUKO socket outlet, lockable with same key/lock no. 200, light grey, AQUASTAR – MEG2423-8029
€ 54,43 exkl. USt.
SCHUKO socket outlet, lockable with same key/lock no. 200, light grey, AQUASTAR – MEG2423-8029 is backordered and will ship as soon as it is back in stock.
Can be labelled with a label field insert. Surface-mounted installation. With screw terminals. Protection class IP 44. Dimensions approx. 83x73x70 mm. Accessories: label field insert AQUASTAR MEG3952-8000. Double entry AQUASTAR MEG3961-80xx connection piece AQUASTAR MEG3963-80xx cable entry AQUASTAR MEG3964-8029. Duct entry AQUASTAR MEG3965-80xx slide with nozzle AQUASTAR MEG3962-8029. Scope of delivery: With safety lock, 2 keys per socket. Colour light grey.
€ 54,43 exkl. USt.
SCHUKO socket outlet, lockable with same key/lock no. 200, light grey, AQUASTAR – MEG2423-8029 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Design | Schuko socket CEE 7/3 (Type F) | Switched neutral conductor | No |
| Protective contact | Earthing clips | Number of active contacts (round) | 2 |
| Number of active contacts (flat) | 0 | Number of active contacts (square) | 0 |
| With signal lamp | No | Number of USB-A ports | 0 |
| Number of USB-C ports | 0 | Number of sockets | 1 |
| Number of modules (for modular design) | 0 | Number of switchable sockets | 0 |
| Number of phases | 1 | Imprint/Labeling | without |
| Connection type | Screw terminal | With hinged lid | Yes |
| With increased touch protection | No | Text field/labeling area | No |
| Color | grey | RAL number (similar) | 7035 |
| Metallic color | No | Transparent | No |
| Lockable | Yes | Ejection mechanism | No |
| Insulated installation | Yes | With functional lighting | No |
| With orientation light | No | Overvoltage protection | No |
| Residual current protection | No | With fine-wire fuse | No |
| Special power supply | none | Mounting method | Surface-mounted |
| Type of fastening | Screw fastening | Material | Plastic |
| Material quality | Thermoplastic | Halogen-free | Yes |
| Surface protection | untreated | Surface finish | matt |
| Antibacterial treatment | No | With loop-through function | Yes |
| Number of loops | 1 | With on/off switch | No |
| Rotated central insert | No | Rated current | 16 A |
| Rated voltage | 250 V | Frequency | 50..50 Hz |
| Rated fault current | 0 mA | Suitable for degree of protection (IP) | IP44 |
| Impact resistance | IK04 | Device width | 73 mm |
| Device height | 83 mm | Device depth | 71 mm |
| Min. depth of device box | 0 mm | Compatible with Apple HomeKit | No |
| Compatible with Amazon Alexa | No | Compatible with Google Assistant | No |
| IFTTT support available | No | With Wi-Fi signal repeater | No |
| With integrated Bluetooth speaker | No |
