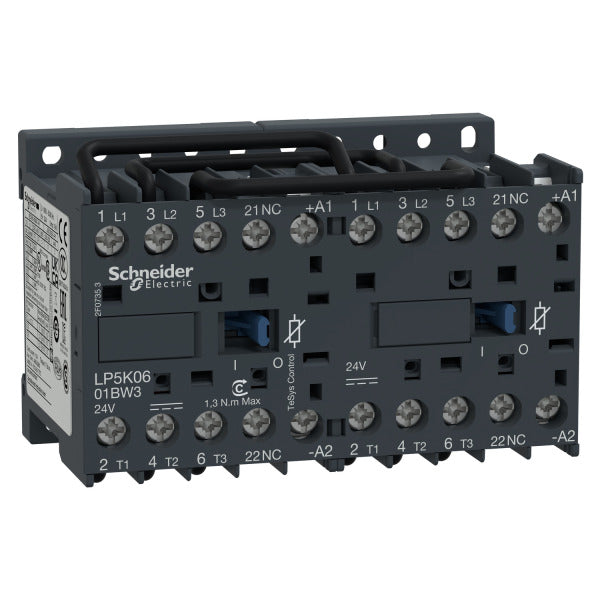

Reversing Contactor Assembly, 3p, 6A, Coil 24V DC – LP5K0601BW3
€ 96,43 exkl. USt.
Reversing Contactor Assembly, 3p, 6A, Coil 24V DC – LP5K0601BW3 is backordered and will ship as soon as it is back in stock.
3-pole TeSys K reversing contactor for motor applications up to 2.2 kW@400V. It offers 24V DC low-consumption coils with surge protection, compatible with PLC outputs. Built-in 2NO auxiliary contacts, screw clamp connection, pre-wired reversing power circuit, mechanical interlock. Compact DIN rail mounting and screw fixing ensure reliability and durability in standard applications. Certified to multiple standards (IEC, UL, CSA, CCC, EAC) and Green Premium (RoHs/Reach).
€ 96,43 exkl. USt.
Reversing Contactor Assembly, 3p, 6A, Coil 24V DC – LP5K0601BW3 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Function | Reversing contactor | Suitable for DIN rail mounting | No |
| Rated control supply voltage DC | 24..24 V | Type of voltage for actuation | DC |
| Number of NC contacts as main contacts | 0 | Number of NO contacts as main contacts | 3 |
| Type of electrical connection for main circuit | Screw connection | Type of voltage of the operating voltage | DC |
| Operating voltage DC | 440..440 V | Rated operational current Ie at AC-3, 400 V | 6 A |
| Rated operational power at AC-3, 400 V | 2.2 kW | Rated operational power NEMA | 2.24 kW |
| Number of auxiliary contacts as NC contacts | 1 | Number of auxiliary contacts as NO contacts | 0 |
| Type of electrical connection for auxiliary and control circuit | Screw connection | Degree of protection (IP) | IP20 |
| Degree of protection (NEMA) | other | Width | 90 mm |
| Height | 58 mm | Depth | 57 mm |
