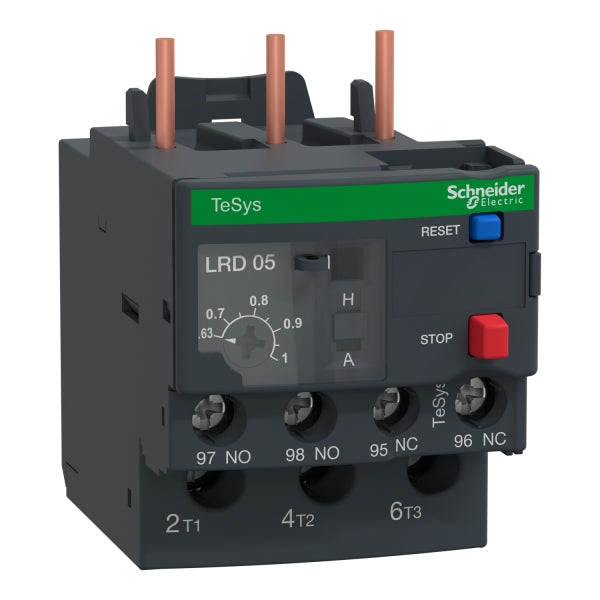

Motor protection relay, 0.63-1A, 1NO+1NC, Class 10A – LRD05
€ 58,22 exkl. USt.
Motor protection relay, 0.63-1A, 1NO+1NC, Class 10A – LRD05 is backordered and will ship as soon as it is back in stock.
TeSys LR – 3-pole motor protection relays. Motor protection relays. Adjustment range_Relay 0.63-1 A, Max. size aM 2, Max. size BS88 –, Max. size gG 4, MTZ 01, Use D09-D38. Temperature compensated with differential protection. With manual or automatic reset. Trip class 10 A. Screw terminals. Mounts directly under the contactor. Choice of manual or automatic reset on the front panel. Red button for "Test" function. Blue button for "Off" and "Manual Reset" functions. Yellow mechanical indicator appears when the relay trips. Auxiliary contacts 1NO+1NC.
€ 58,22 exkl. USt.
Motor protection relay, 0.63-1A, 1NO+1NC, Class 10A – LRD05 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Adjustable current range | 0.63..1 A | Max. rated operational voltage Ue | 690 V |
| Number of auxiliary contacts as changeover contacts | 0 | Reset function button | Yes |
| Mounting method | Direct mounting | Release class | CLASS 10 A |
| Number of auxiliary contacts as NC contacts | 1 | Reset function input | No |
| Reset function automatic | Yes | Type of connection main circuit | Screw connection |
| Number of auxiliary contacts as NO contacts | 1 |
