Contactor, 4P+1NO+1NC, 40A/AC1, Coil 230V 50/60Hz – LC1DT40P7
€ 90,25 exkl. USt.
Contactor, 4P+1NO+1NC, 40A/AC1, Coil 230V 50/60Hz – LC1DT40P7 is backordered and will ship as soon as it is back in stock.

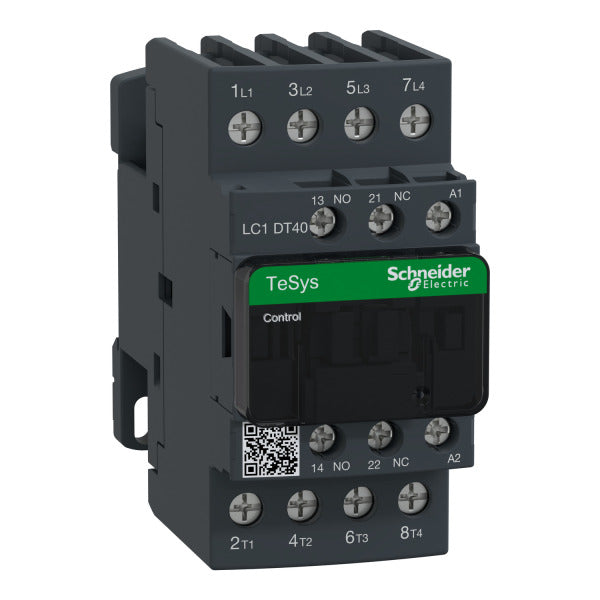

Contactor TeSys LC1D. 4-pole, 4 NO. Auxiliary contacts - 1 NO + 1 NC, coil 230 V AC. Dimensions (WxHxD) 45x91x99 mm, weight 0.425 kg. Category AC-1. Without integrated suppression module. Fast and easy setup. Secure and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically linked contacts and mirror contacts. Certifications according to CCC, LROS (Lloyds register of shipping), RINA, UL, DNV, BV, CSA, GL, GOST. Product standards acc. to
€ 90,25 exkl. USt.
Contactor, 4P+1NO+1NC, 40A/AC1, Coil 230V 50/60Hz – LC1DT40P7 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Number of normally open main contacts | 4 | Operating voltage AC 50 Hz | 440..440 V |
| Rated control supply voltage AC 60 Hz | 230..230 V | Operating voltage AC 60 Hz | 440..440 V |
| Width | 45 mm | Main circuit connection type | Screw connection |
| Depth | 99 mm | Rated operational current Ie at AC-1, 400 V | 40 A |
| Type of voltage for actuation | AC | Height | 91 mm |
| Number of auxiliary contacts as normally open contacts | 1 | Number of auxiliary contacts as normally closed contacts | 1 |
| Suitable for series installation | No | Rated control supply voltage AC 50 Hz | 230..230 V |
| Number of normally closed main contacts | 0 |
