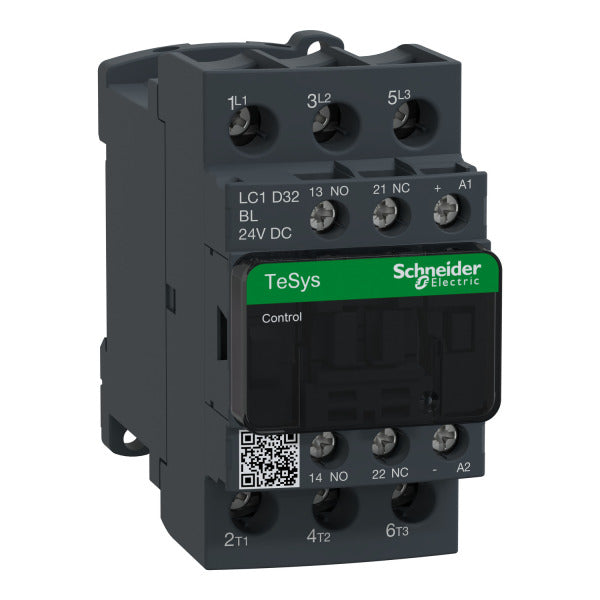

Contactor, 3p+1NO+1NC, 15kW/400V/AC3, 32A, Coil 24V DC – LC1D32BL
€ 146,19 exkl. USt.
Contactor, 3p+1NO+1NC, 15kW/400V/AC3, 32A, Coil 24V DC – LC1D32BL is backordered and will ship as soon as it is back in stock.
TeSys LC1D contactor. 3-pole, 3 NO contacts. Additional auxiliary contacts - 1 NO + 1 NC. Rated operational power at AC-3, 400 V 15 kW. Rated operational current Ie at AC-3, 400 V 32 A. Coil 24 V DC. Dimensions (WxHxD) 45x85x101 mm, weight 0.535 kg. Category AC-3, AC-1, AC-4. Integrated bidirectional peak limiting diode. Quick and easy setup. Secure and durable electrical connection with Everlink and spring terminals. Suitable for safety applications due to mechanically linked contacts and mirror contacts. Certifications according to DNV, RINA, BV, GL, LROS (Lloyd's Register of Shipping), CCC, GOST, CSA, UL. Product standards according to.
€ 146,19 exkl. USt.
Contactor, 3p+1NO+1NC, 15kW/400V/AC3, 32A, Coil 24V DC – LC1D32BL is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Rated control supply voltage DC | 24..24 V | Voltage type for actuation | DC |
| Number of NC contacts as main contacts | 0 | Number of NO contacts as main contacts | 3 |
| Type of electrical connection for main current circuit | Screw connection | Rated operational current Ie at AC-1, 400 V | 50 A |
| Rated operational current Ie at AC-3, 400 V | 32 A | Rated operational power at AC-3, 400 V | 15 kW |
| Rated operational current Ie at AC-4, 400 V | 18 A | Rated operational power at AC-4, 400 V | 7.5 kW |
| Number of auxiliary contacts as NO contact | 1 | Number of auxiliary contacts as NC contact | 1 |
| Suitable for series installation | No | Width | 45 mm |
| Height | 85 mm | Depth | 101 mm |
