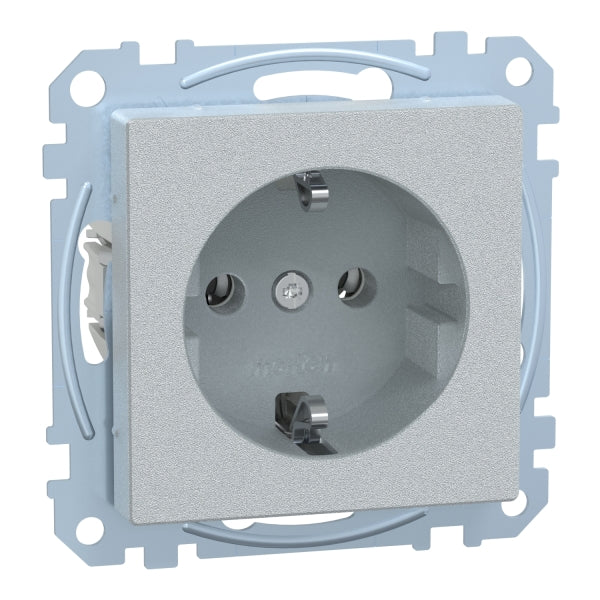

SCHUKO socket outlet, push-in terminals, aluminium, System M – MEG2301-0460
€ 12,18 exkl. USt.
SCHUKO socket outlet, push-in terminals, aluminium, System M – MEG2301-0460 is backordered and will ship as soon as it is back in stock.
Features-Front-sided retrofitting of QuickFlex add-on modules without dismounting the socket. -Quick-thread screws for claw mounting. -Recessed claws with return spring. -High-gloss galvanized support ring insulated to the claw. With claw and screw mounting. With plug-in terminals. Accessories -Surge protection extension set for SCHUKO sockets System M MEG2335-03xx/-04xx. -LED lighting extension set for SCHUKO sockets System M MEG2334-03xx/-04xx. -Control light extension set for SCHUKO sockets System M MEG2333-03xx/-04xx Material Thermoplastic noble matt. Color aluminum.
€ 12,18 exkl. USt.
SCHUKO socket outlet, push-in terminals, aluminium, System M – MEG2301-0460 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Design | Schuko socket CEE 7/3 (type F) | Switched neutral conductor | No |
| Protective contact | Earthing clips | Number of active contacts (round) | 2 |
| Number of active contacts (flat) | 0 | Number of active contacts (square) | 0 |
| With signal lamp | No | Number of USB-A ports | 0 |
| Number of USB-C ports | 0 | Number of sockets | 1 |
| Number of modules (for modular design) | 0 | Number of switchable sockets | 0 |
| Number of phases | 1 | Imprint/labeling | without |
| Connection type | Plug-in terminal | With hinged lid | No |
| With increased touch protection | No | Text field/labeling area | No |
| Color | Aluminium | Metallic color | No |
| Transparent | No | Lockable | No |
| Ejection mechanism | No | Insulated mounting | Yes |
| With functional lighting | No | With orientation light | No |
| Overvoltage protection | No | Residual current protection | No |
| With miniature fuse | No | Special power supply | none |
| Mounting method | Flush-mounted | Fastening type | Claw/screw fastening |
| Material | Plastic | Material quality | Thermoplastic |
| Halogen free | Yes | Surface protection | painted |
| Surface finish | matt | Antibacterial treatment | No |
| With loop-through function | Yes | Number of loops | 1 |
| With on/off switch | No | Rotated central insert | No |
| Rated current | 16 A | Rated voltage | 250 V |
| Frequency | 50..50 Hz | Rated residual current | 0 mA |
| Suitable for protection class (IP) | IP20 | Impact resistance | IK03 |
| Device width | 71 mm | Device height | 71 mm |
| Device depth | 40 mm | Min. depth of device box | 40 mm |
| Compatible with Apple HomeKit | No | Compatible with Amazon Alexa | No |
| Compatible with Google Assistant | No | IFTTT support available | No |
| With Wi-Fi signal repeater | No | With built-in Bluetooth speaker | No |
