SCHNEIDER ELECTRIC  Art.Nr: 15433070379339

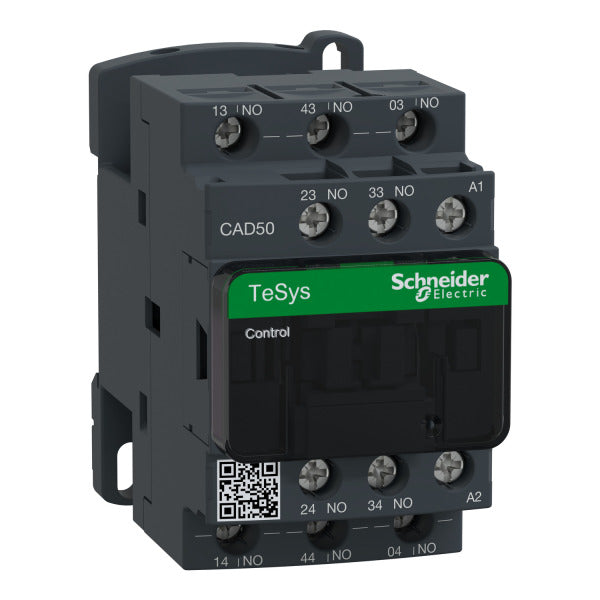

Auxiliary Contactor CAD, 5S, 10A, 230VAC – CAD50P7

€ 50,24 inkl. USt.
€ 41,87 exkl. USt.
Verfügbarkeit wird geladen …
WhatsApp Sofortberatung Jetzt online Persönliche Beratung direkt vom Fachmann – Antwort meist in wenigen Minuten.

TeSys CAD auxiliary contactors. Auxiliary contactor, AC operated 230 V 50/60Hz. Screw clamp terminals, auxiliary switch 5 NO, MTZ 12. Device width 45 mm, screw and snap-on mounting. Five integrated auxiliary contacts, expandable by up to nine auxiliary contacts.

Installation anfragen
Montage • Elektro • Inbetriebnahme
Wir bieten die Installation deiner Photovoltaikanlage durch unser Team sowie durch ausgewählte Partnerbetriebe an. Gemeinsam sorgen wir für eine fachgerechte Montage, Elektroinstallation und zuverlässige Inbetriebnahme.
Installation anfragen
Datenblatt
Hinweis: Der Link kann je nach Hersteller direkt einen Download starten.
Öffnen / Download

Technische Parameter

Type of voltage for actuation AC Interface No
Number of auxiliary contacts as normally open, leading 0 Height 77 mm
Rated control supply voltage AC 50 Hz 230..230 V Number of auxiliary contacts as normally open 5
Rated control supply voltage AC 60 Hz 230..230 V Rated operational current 10 A
Rated operational current Ie, 400 V 10 A Operating voltage AC 50 Hz 690..690 V
Mounting method DIN rail/screw Suitable for manual operation No
Connection type auxiliary circuit Screw terminal Rated switching current 0.005 A
Width 45 mm Number of auxiliary contacts as normally closed, delayed switching 0
Number of auxiliary contacts as normally closed 0 With LED indication No
Type of voltage for operating voltage AC Number of auxiliary contacts as changeover contacts 0
Depth 93 mm Operating voltage AC 60 Hz 690..690 V
