SCHNEIDER ELECTRIC
Art.Nr: 15433067135307

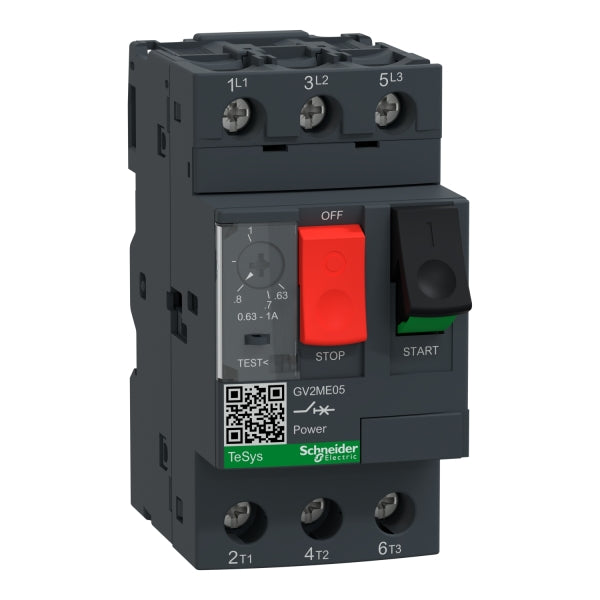

Motor circuit breaker, 3-pole, 0.63-1A, push button, screw clamp terminals – GV2ME05
Regular price
Regular price
€ 80,34
inkl. USt.
€ 66,95 exkl. USt.
€ 66,95 exkl. USt.
Unit price
Verfügbarkeit wird geladen …
Motor circuit breaker, 3-pole, 0.63-1A, push button, screw clamp terminals – GV2ME05 is backordered and will ship as soon as it is back in stock.
TeSys Motor Protection Circuit Breaker GV2ME. Motor protection circuit breaker, 3P, pushbutton operation, screw connection. Rated power 0.25 kW, setting range 0.63-1 A. With thermal and magnetic releases. Lockable and sealable in basic version. Operated via pushbuttons, screw terminals. Rated voltage 400 V, according to AC-3.
SCHNEIDER ELECTRIC
Art.Nr: 15433067135307
Regular price
Regular price
€ 80,34
inkl. USt.
€ 66,95 exkl. USt.
€ 66,95 exkl. USt.
Unit price
Motor circuit breaker, 3-pole, 0.63-1A, push button, screw clamp terminals – GV2ME05 is backordered and will ship as soon as it is back in stock.
Installation anfragen
Montage • Elektro • Inbetriebnahme
Wir bieten die Installation deiner Photovoltaikanlage durch unser Team sowie durch ausgewählte Partnerbetriebe an. Gemeinsam sorgen wir für eine fachgerechte Montage, Elektroinstallation und zuverlässige Inbetriebnahme.
Installation anfragen
Datenblatt
Hinweis: Der Link kann je nach Hersteller direkt einen Download starten.
Technische Parameter
Technische Parameter
| Depth | 78.2 mm | Width | 44.5 mm |
| Height | 89 mm | Degree of protection (IP) | IP20 |
| Rated ultimate short-circuit breaking capacity Icu at 400 V, AC | 100 kA | Number of poles | 3 |
| With integrated undervoltage release | No | With integrated auxiliary switch | No |
| Device construction type | Complete device in housing | Type of actuating element | Push button |
| Connection type main current circuit | Screw connection | Power loss | 2.5 W |
| Rated operational power at AC-3, 400 V | 0.25 kW | Rated operational power at AC-3, 230 V | 0.12 kW |
| Rated continuous current Iu | 1 A | Rated operational voltage | 230..690 V |
| Release technology | Thermal-magnetic | Phase failure sensitive | Yes |
| With thermal overload protection | Yes | Setting range of the instantaneous short-circuit release | 13..13 A |
| Overload release current setting | 0.63..1 A |
