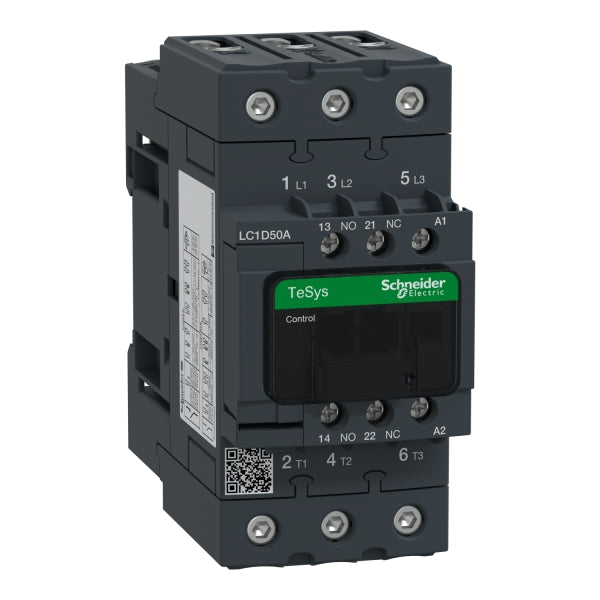

Contactor, 3P+1NO+1NC, 22kW/400V/AC3, 50A, Coil 230V 50/60Hz – LC1D50AP7
€ 148,25 exkl. USt.
Contactor, 3P+1NO+1NC, 22kW/400V/AC3, 50A, Coil 230V 50/60Hz – LC1D50AP7 is backordered and will ship as soon as it is back in stock.
TeSys LC1D contactor. 3-pole, 3 NO contacts. Auxiliary contacts - 1 NO + 1 NC, rated operational power at AC-3, 400 V 22 kW, rated operational current Ie at AC-3, 400 V 50 A, coil 230 V AC. Dimensions (WxHxD) 55x122x120 mm, weight 0.855 kg. Category AC-1, AC-4, AC-3. Without integrated suppression module. Quick and easy setup. Secure and durable power connection with Everlink and spring terminals. Suitable for safety applications due to mechanically linked contacts and mirror contacts. Certifications according to GL, BV, GOST, CCC, CSA, UL, RINA, LROS (Lloyds Register of Shipping), DNV. Product standards acc. to
€ 148,25 exkl. USt.
Contactor, 3P+1NO+1NC, 22kW/400V/AC3, 50A, Coil 230V 50/60Hz – LC1D50AP7 is backordered and will ship as soon as it is back in stock.
Technische Parameter
Technische Parameter
| Rated control supply voltage AC 50 Hz | 230..230 V | Rated control supply voltage AC 60 Hz | 230..230 V |
| Type of voltage for actuation | AC | Number of NC contacts as main contacts | 0 |
| Number of NO contacts as main contacts | 3 | Type of electrical connection main circuit | Screw connection |
| Operating voltage AC 50 Hz | 440..440 V | Operating voltage AC 60 Hz | 440..440 V |
| Rated operational current Ie at AC-1, 400 V | 80 A | Rated operational current Ie at AC-3, 400 V | 50 A |
| Rated operational power at AC-3, 400 V | 22 kW | Rated operational current Ie at AC-4, 400 V | 25 A |
| Rated operational power at AC-4, 400 V | 11 kW | Number of auxiliary contacts as NO contacts | 1 |
| Number of auxiliary contacts as NC contacts | 1 | Suitable for series installation | No |
| Width | 55 mm | Height | 122 mm |
| Depth | 120 mm |
