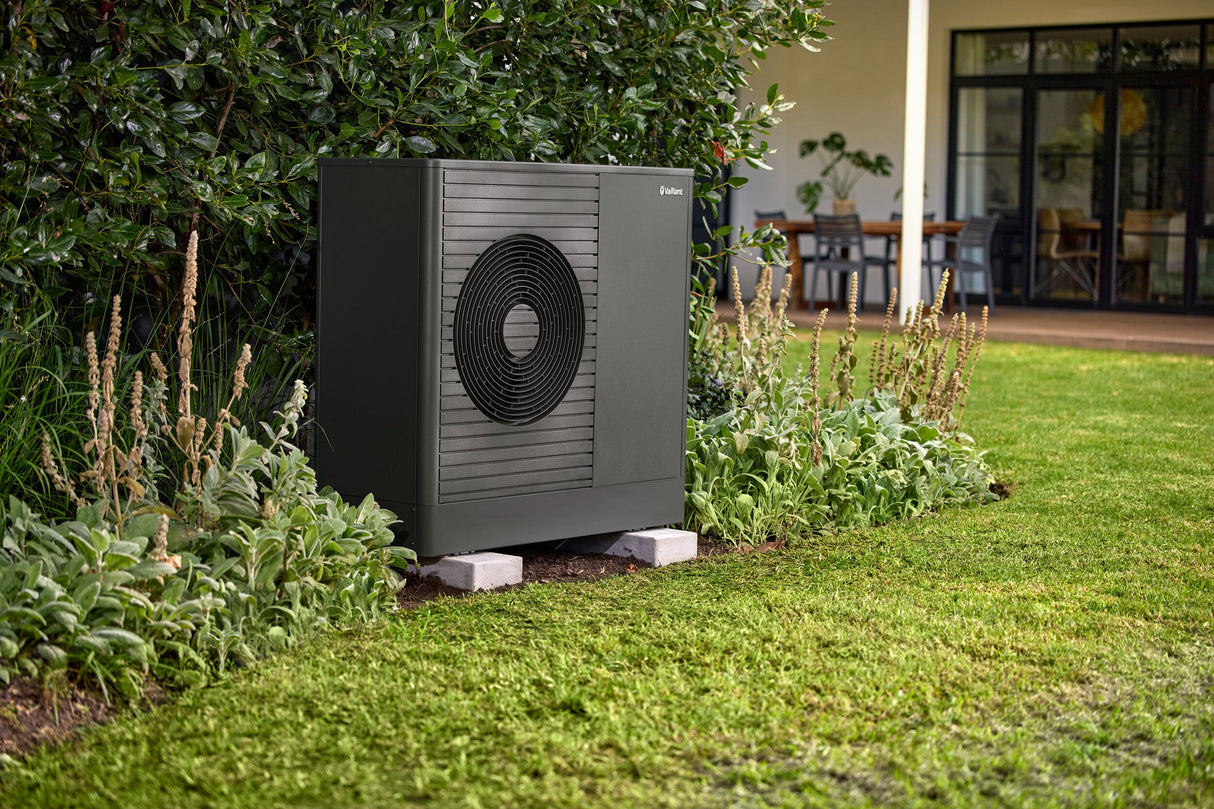

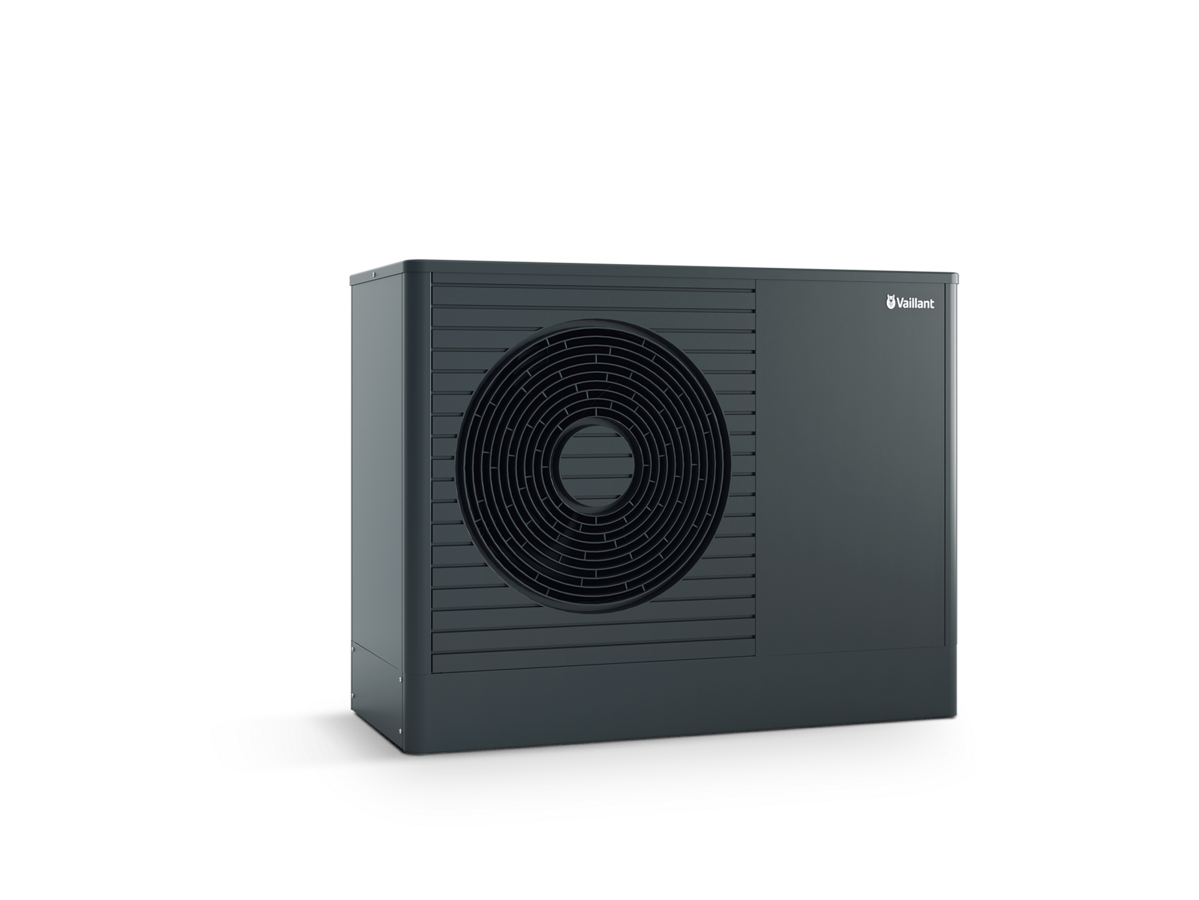

VAILLANT Vaillant Air/Water Heat Pump 3 kW aroTHERM plus VWL 35/8.1 Monobloc R290 – 8000033702 DACH Version
€ 5.312,25 exkl. USt.
VAILLANT Vaillant Air/Water Heat Pump 3 kW aroTHERM plus VWL 35/8.1 Monobloc R290 – 8000033702 DACH Version is backordered and will ship as soon as it is back in stock.
Advantages at a glance
A+++ at 35 °C
196% seasonal space heating energy efficiency. The /8.1 series is Vaillant's most efficient air-to-water heat pump.
Refrigerant R290
Propane with a GWP of 0.02 – practically no global warming potential and long-term regulatory security.
Sound Safe System
Max. sound power level of 52.7 dB(A), in night mode only 27.5 dB(A) at 3 m distance.
Flow up to 75 °C
Renovation without radiator replacement: even existing radiator systems can continue to operate efficiently.
Active cooling
Activatable cooling operation with 4.89 kW at A35/W18 and EER 4.76. On-site preparation of the heating system required.
230 V – no heavy current needed
Single-phase connection with a maximum of 15.2 A. The VR 940 for connection is included in the scope of delivery.
Performance & Efficiency according to EN 14511
| Operating point | Heating capacity / Input / COP |
|---|---|
| A7/W35 | 2.00 kW / 0.41 kW / 4.92 |
| A2/W35 | 3.17 kW / 0.78 kW / 4.07 |
| A−7/W35 | 4.26 kW / 1.40 kW / 3.04 |
| A7/W45 | 2.00 kW / 0.55 kW / 3.66 |
| A7/W55 | 2.76 kW / 0.95 kW / 2.92 |
| A−7/W55 | 4.81 kW / 2.25 kW / 2.14 |
| Cooling A35/W18 | 4.89 kW / 1.03 kW / EER 4.76 |
Technical Data
| Parameter | Value |
|---|---|
| Energy efficiency class 35 °C / 55 °C | A+++ / A++ |
| Space heating efficiency ηs 35 °C / 55 °C | 196 % / 143 % |
| Heating capacity partial load point A (Tj −7 °C) W35 | 4.2 kW |
| Refrigerant / Filling quantity / GWP | R290 / 0.6 kg / 0.02 |
| Electrical power consumption (max) | 3.4 kW |
| Voltage supply / Current (max) | 230 V (50 Hz) / 15.2 A |
| Protection class / Protection category | IPX4 / I |
| Sound power level (max) | 52.7 dB(A) |
| Sound power A7/W35 in silent mode | 45.0 dB(A) |
| Dimensions (H × W × D) | 765 × 1,100 × 450 mm |
| Weight | 113 kg |
| Heating connection flow and return | G 1¼″ |
| Heating circuit content | 1.5 l |
Operating Limits
| Parameter | Value |
|---|---|
| Flow temperature heating | 20 – 75 °C |
| Distance outdoor unit to last indoor unit | max. 20 m |
| Operating pressure heating circuit | max. 2.5 bar |
| Installation | Monoblock, outdoor installation |
| Colour | Black-grey RAL 7021 |
Scope of delivery
Frequently Asked Questions
What does the DACH version mean?
The device, control system, and documentation are designed for the German-speaking region: menu navigation and documentation in German, mains connection 230 V / 50 Hz. This means the heat pump can be used equally in Germany, Austria, and Switzerland. Subsidies and registration requirements differ per country – your local installer will clarify this.
Why R290 and not R32 or R410A?
R290 is propane, a natural refrigerant with a global warming potential of 0.02 instead of several hundred. It is not subject to the shortage of fluorinated refrigerants and also achieves higher flow temperatures – here up to 75 °C.
Is the 3 kW size suitable for my house?
The VWL 35/8.1 delivers 4.26 kW at an outdoor temperature of -7 °C and a flow temperature of 35 °C. This is suitable for well-insulated new buildings or smaller renovated buildings with a heating load of around 4 to 6 kW. The exact design requires a heating load calculation according to EN 12831.
Can I continue to use old radiators with this?
Yes. With a flow temperature of up to 75 °C, the aroTHERM plus reaches temperatures that can also serve older radiators. However, efficiency is only achieved with a low flow temperature – at 55 °C, the efficiency is 143%, at 35 °C it is 196%.
How loud is the heat pump in operation?
52.7 dB(A) sound power maximum, in silent mode at A7/W35 only 45.0 dB(A). In night mode, it is 27.5 dB(A) at 3 m distance – quieter than a quiet living room.
What else do I need in addition to the outdoor unit?
The aroTHERM plus is a monoblock, the complete refrigeration circuit is located outside. For a complete system, depending on the concept, a hydraulic station or a uniTOWER, a hot water cylinder, and the system control are added. We can put together a suitable package on request.
Where can I buy the Vaillant heat pump?
At SOLARVIC on solarvic.at – as a specialist dealer and installer, we deliver throughout Austria and advise on design. Shipping within Austria is free for orders over €5,000.
