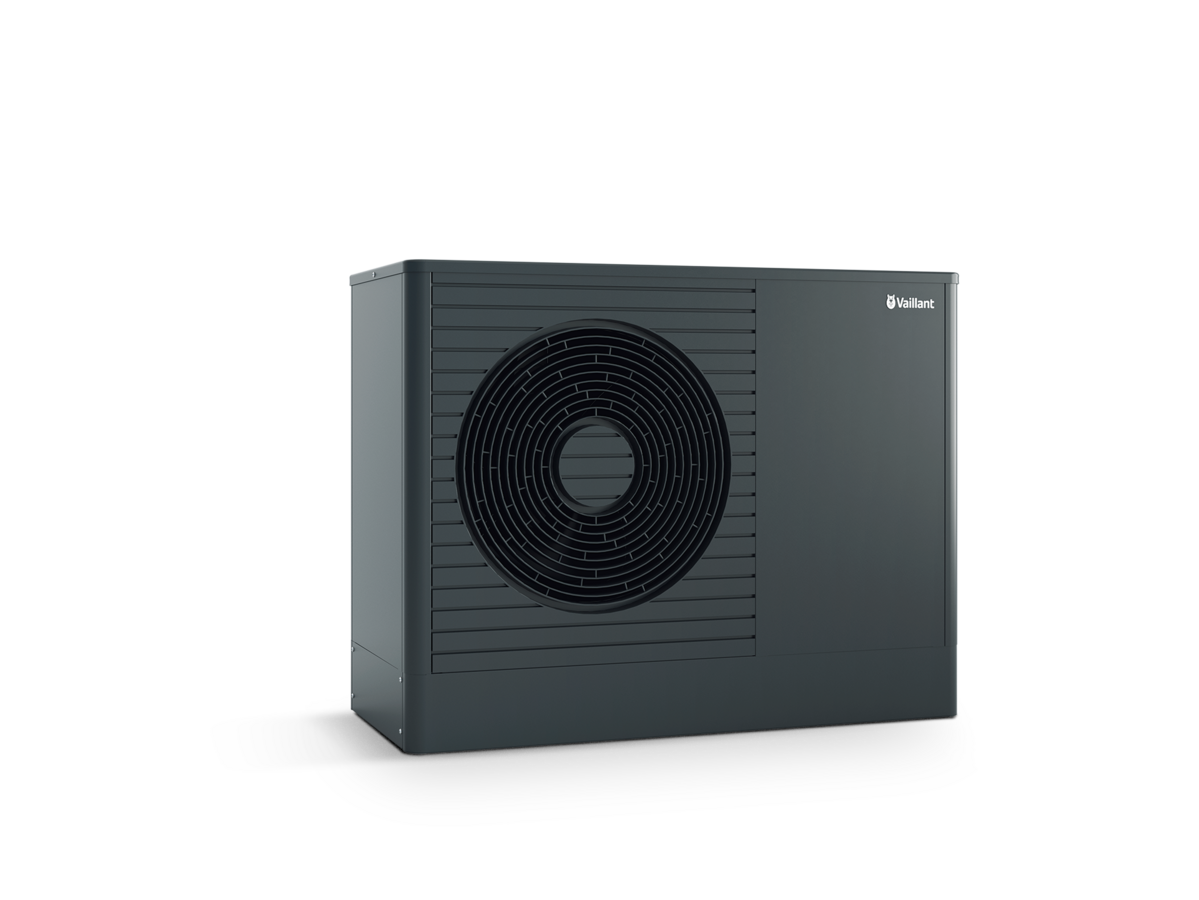

VAILLANT Vaillant Air/Water Heat Pump 10 kW aroTHERM plus VWL 105/8.1 Monoblock R290 – 8000033712 DACH Version
€ 8.412,94 exkl. USt.
VAILLANT Vaillant Air/Water Heat Pump 10 kW aroTHERM plus VWL 105/8.1 Monoblock R290 – 8000033712 DACH Version is backordered and will ship as soon as it is back in stock.
Advantages at a glance
A+++ at 35 °C and at 55 °C
202 % space heating efficiency at 35 °C, 151 % at 55 °C – the highest rating in both temperature classes.
Refrigerant R290
Propane with a GWP of 0.02 – practically no global warming potential and long-term regulatory security.
Sound Safe System
Maximum sound power of 58.2 dB(A), only 27.5 dB(A) at 3m distance in night mode.
Flow up to 75 °C
Renovation without radiator replacement: existing radiator systems can also be operated efficiently.
Active cooling
Activatable cooling operation with 11.66 kW at A35/W18 and EER 5.03. On-site preparation of the heating system required.
Modulating inverter
The compressor dynamically adjusts the output to the heating load – from 5.69 kW at A7/W35 to 10.58 kW at -7 °C.
Performance & Efficiency according to EN 14511
| Operating point | Heating output / power input / COP |
|---|---|
| A7/W35 | 5.69 kW / 1.08 kW / 5.29 |
| A2/W35 | 5.82 kW / 1.32 kW / 4.40 |
| A−7/W35 | 10.58 kW / 3.52 kW / 3.01 |
| A7/W45 | 6.08 kW / 1.51 kW / 4.03 |
| A7/W55 | 5.57 kW / 1.75 kW / 3.19 |
| A−7/W55 | 10.96 kW / 5.41 kW / 2.03 |
| Cooling A35/W18 | 11.66 kW / 2.32 kW / EER 5.03 |
Technical data
| Parameter | Value |
|---|---|
| Energy efficiency class 35 °C / 55 °C | A+++ / A+++ |
| Space heating efficiency ηs 35 °C / 55 °C | 202 % / 151 % |
| Heating capacity partial load point A (Tj −7 °C) W35 | 9.6 kW |
| Refrigerant / fill quantity / GWP | R290 / 1.3 kg / 0.02 |
| Electrical power consumption (max) | 8.0 kW |
| Voltage supply / current (max) | 400 V (50 Hz) / 14 A |
| Protection class / protection type | IPX4 / I |
| Sound power level (max) | 58.2 dB(A) |
| Sound power A7/W35 in whisper mode | 49.6 dB(A) |
| Dimensions (H × W × D) | 1,480 × 1,100 × 450 mm |
| Weight | 206 kg |
| Heating flow and return connection | G 1¼″ |
| Heating circuit volume | 4.5 l |
Operating limits
| Parameter | Value |
|---|---|
| Flow temperature heating | 20 – 75 °C |
| Distance outdoor unit to last indoor unit | max. 20 m |
| Operating pressure heating circuit | max. 2.5 bar |
| Installation | Monoblock, outdoor installation |
| Color | black-gray RAL 7021 |
Scope of delivery
Frequently asked questions
What does the DACH version mean?
The device, controls, and documentation are designed for the German-speaking region: menu navigation and documentation in German, mains connection 400 V / 50 Hz. This allows the heat pump to be used equally in Germany, Austria, and Switzerland. Funding and registration requirements differ by country – your local installer will clarify this.
Why R290 and not R32 or R410A?
R290 is propane, a natural refrigerant with a global warming potential of 0.02 instead of several hundred. It is not affected by the scarcity of fluorinated refrigerants and at the same time achieves higher flow temperatures – up to 75 °C here.
Is the 10 kW size suitable for my house?
The VWL 105/8.1 delivers 10.58 kW at an outdoor temperature of -7 °C and a flow of 35 °C. This is suitable for larger single-family homes, two-family homes, or poorly insulated existing buildings with a heating load of around 9 to 12 kW. The exact design requires a heating load calculation according to EN 12831.
Why is this model A+++ even at 55 °C?
With 151% space heating efficiency at 55 °C, the 105/8.1 also achieves the highest rating in the high-temperature class. This makes it particularly interesting for renovations where the radiators remain.
How loud is the heat pump in operation?
58.2 dB(A) sound power at maximum, only 49.6 dB(A) in whisper mode at A7/W35. In night mode, it is 27.5 dB(A) at 3m distance – quieter than a quiet living room.
What else do I need besides the outdoor unit?
The aroTHERM plus is a monoblock, with the complete refrigeration circuit located outdoors. For a complete system, depending on the concept, a hydraulic station or a uniTOWER, a hot water tank and the system control are added. We can put together a suitable package on request.
Where can I buy the Vaillant heat pump?
At SOLARVIC on solarvic.at – as a specialist dealer and installer, we deliver throughout Austria and advise on the design. Shipping within Austria is free for orders over €5,000.
