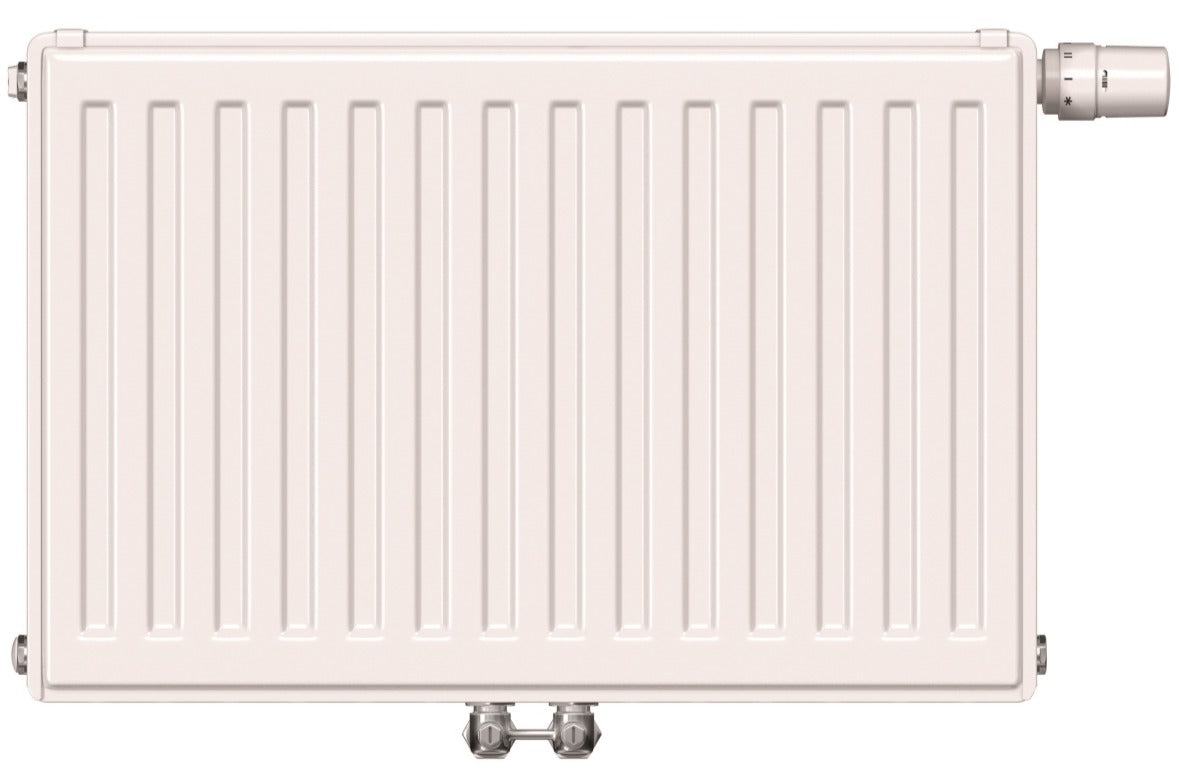

VOGEL&NOOT Vonova Ventil Center Connection 33VM 600/18 Bl 720mm white - F1H330600721000

VN-T6-Mid-connection Radiator Mid-connection radiator made of cold-rolled steel sheet according to EN 442-1, stable, elegantly shaped profiling with 40 mm bead spacing, primer coating according to DIN 55900 Part 1, baked at 190 degrees C, finished with an electrostatic powder coating according to DIN 55900 Part 2, in RAL 9016, baked at 210 degrees C object temperature, equipped with a fixed T-shaped valve set, suitable for two-pipe and one-pipe systems using a one-pipe distributor, the kv-value of the factory-mounted built-in valve is pre-set and matched to the heat output, whereby demand-oriented adjustments are possible in the range of 0.13 to 0.72. Adjustment of the radiator proportion in one-pipe systems from 30% to 50%. Equipped with a construction site protection cap for the built-in valve, rear-welded suspension lugs, a removable top cover and two closed side panels on all types, sealed drain, rotatable special vent and blank plugs, the cover system complies with the former BAGUV guidelines, complete pre-installation possibility using the mounting template 3/4' A.G., flushing and leak testing of the system using a flushing bend (accessories), alternatively also connectable as a compact radiator on one side or interchangeably, uniform wall clearance for all multi-layer radiators (with special corner bracket also for single-layer radiators). Disassembly and assembly of the top cover using decorative clips, performance tested according to DIN EN 442 or ÖNORM EN 442 and permanently monitored during production according to EN-ISO 9001, triple packed (cardboard, edge protection, shrink film). Suitable for manual and thermostatic operation, variable connection option for copper, steel, plastic and multi-layer composite pipes, connections: 4 x G 1/2 I.G. and 2 x G 3/4 A.G. bottom center. Thermostatic valve (factory-sealed top right) can also be easily exchanged to the left at any time afterwards without turning the radiator and without crossing flow and return.
