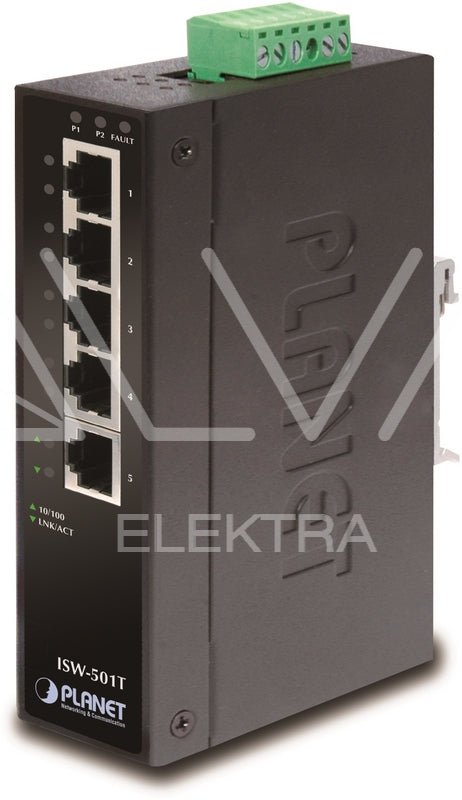

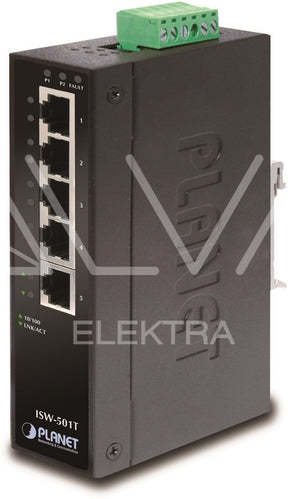

PLANET Industrie Switch IP30 Slim Type 5-Port Industrial Fast Ethernet Switch – ISW-501T

5-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function Layer 2 Features Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX Ethernet standard Supports auto-negotiation and 10/100Mbps half/full duplex mode High performance Store and Forward architecture; runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) Backplane (switching fabric): 1Gbps Integrated address look-up engine, supporting 1K absolute MAC addresses Automatic address learning and address aging Industrial Case & Installation IP30-rated metal case DIN rail and wall-mount design 12 to 48V DC, redundant power with polarity reverse protection function and connective removable terminal block for master and slave power, 24V AC power support Lower Power Consumption device in full load operation mode Supports EFT protection for 6000 VDC for power line Supports 6000 VDC Ethernet ESD protection -40 to 75 degrees C operating temperature Free fall, shock-proof and vibration-proof for industries
